product details / scope of delivery

Description:

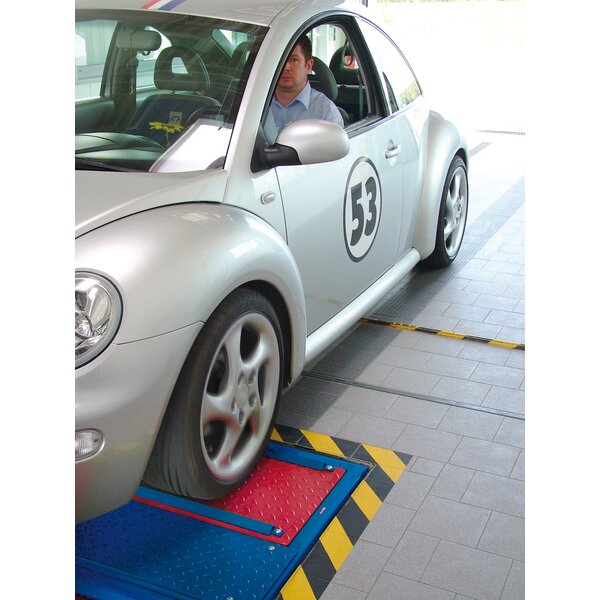

Shock absorber tester for quick and precise,
physical shock absorption testing
for cars and vans of up to 2.5 t axle load (traversable)
with a track width of 2,200 mm

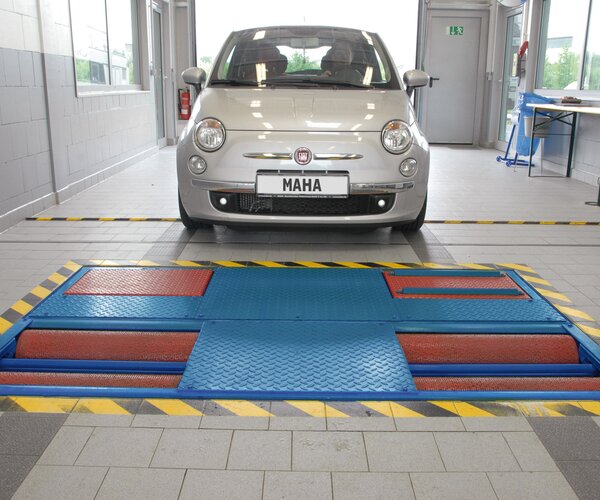

Specially suitable for car reception, diagnostic and
PTI test lanes

  • Evaluation based on Lehr's damping ratio
  • Automatic measurement of axle and vehicle weight with transfer of weight to brake tester (optional)
  • Fully automatic test sequence launched once plate load is more than 60 kgon both sides
  • Frequency-controlled plate excitation by electric motors to determine the maximum vibration amplitude, with subsequent evaluation of axle damping
  • Noise search function for pinpointing interference noises in the vehicle directly on the test stand (optional, only in conjunction with EUROSYSTEM)
  • Floor unit as self-supporting framework

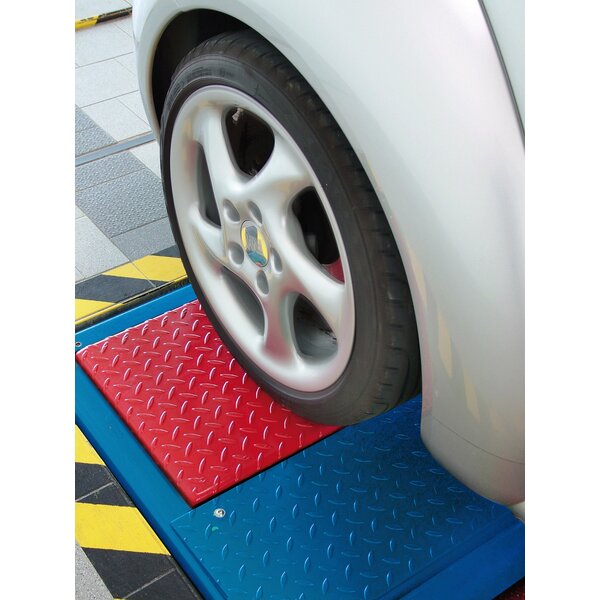

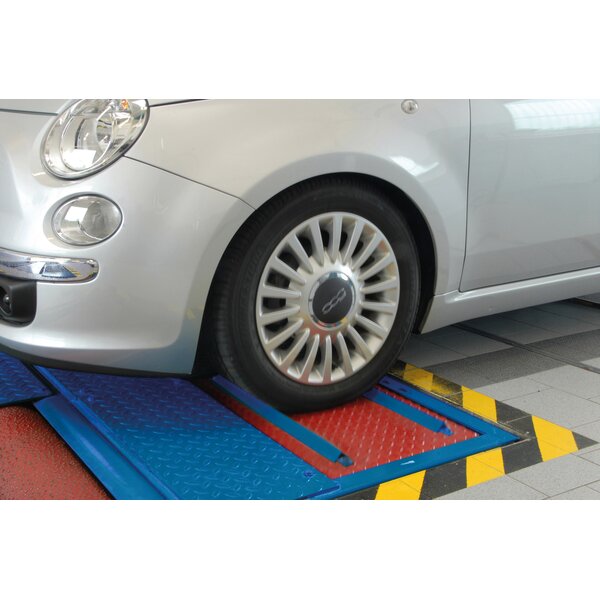

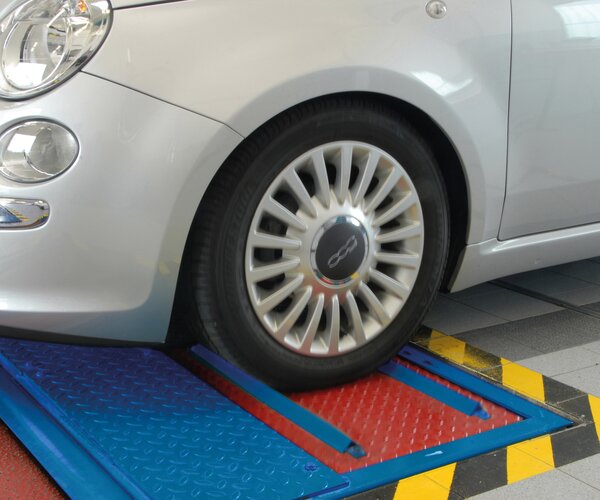

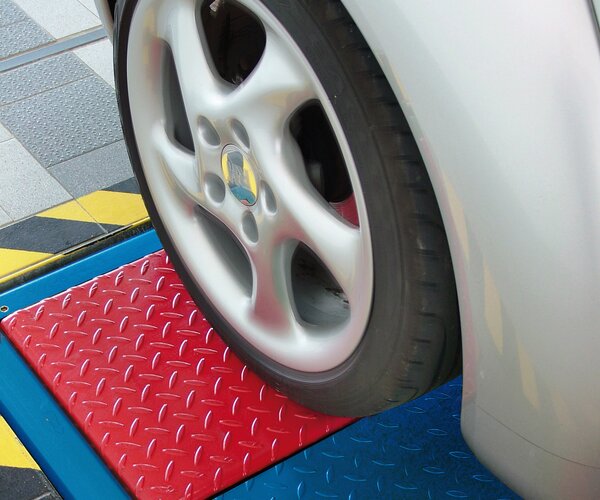

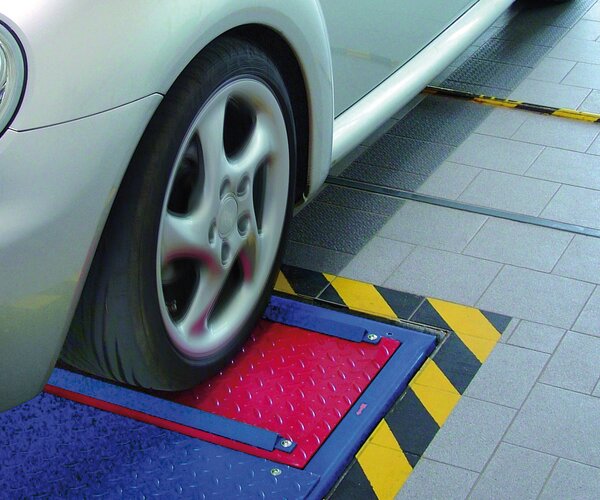

  • Parallelogram-guided test plates and therefore no fixed wheel testing point necessary

In conjunction with CONNECT Web client:
Display on terminal device (Smart device, PC,)

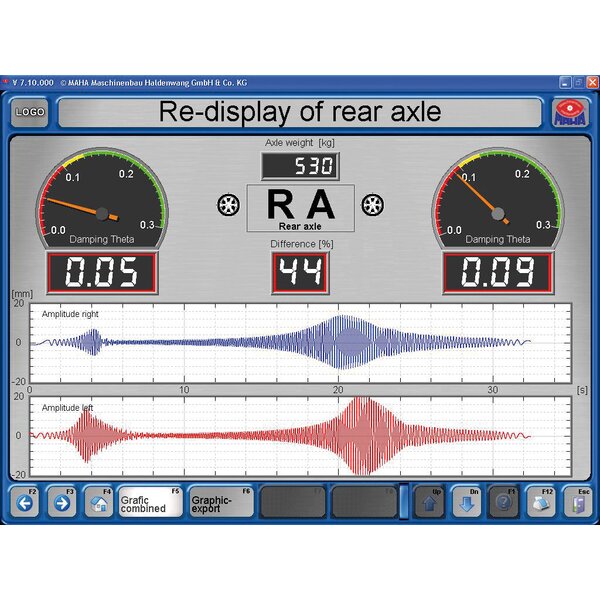

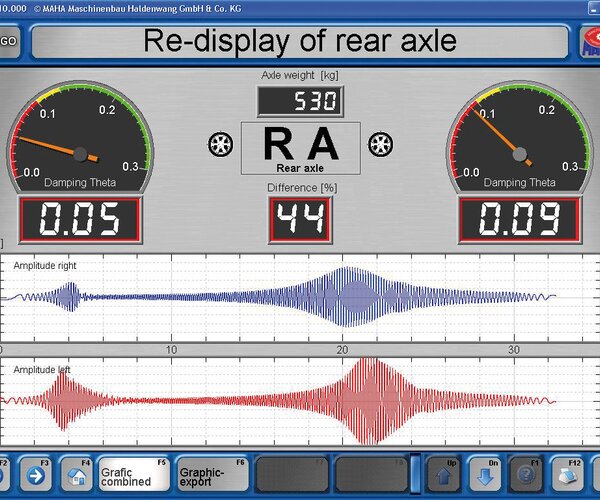

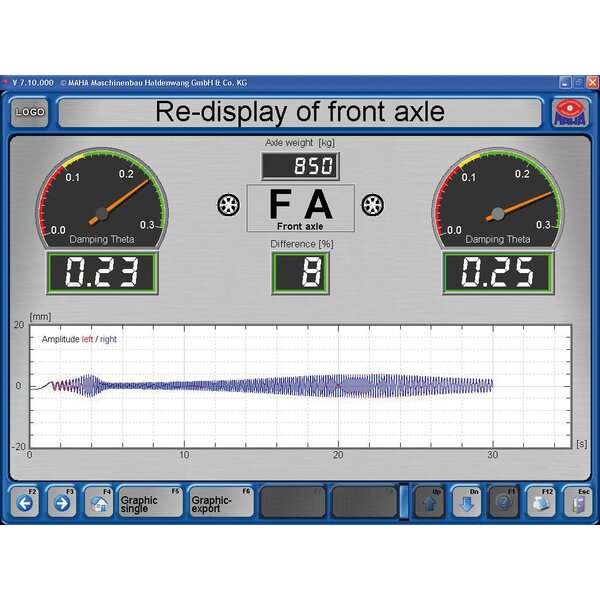

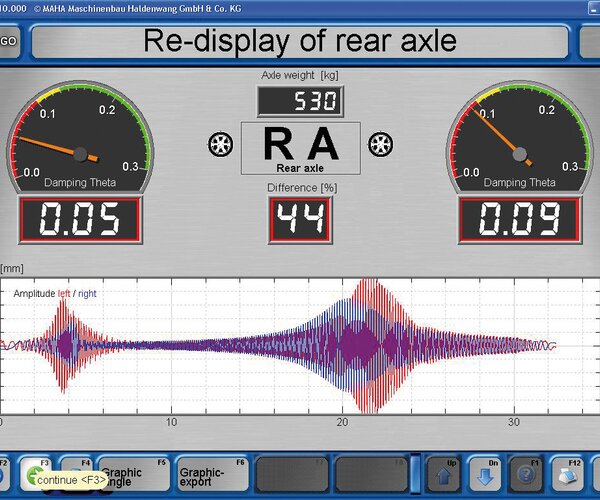

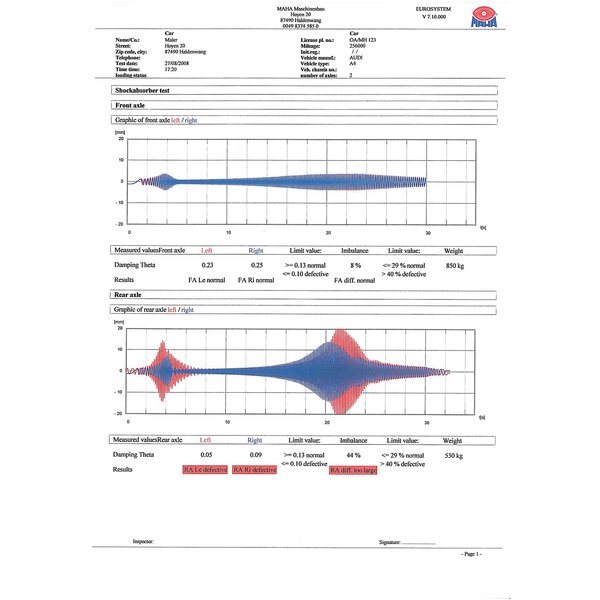

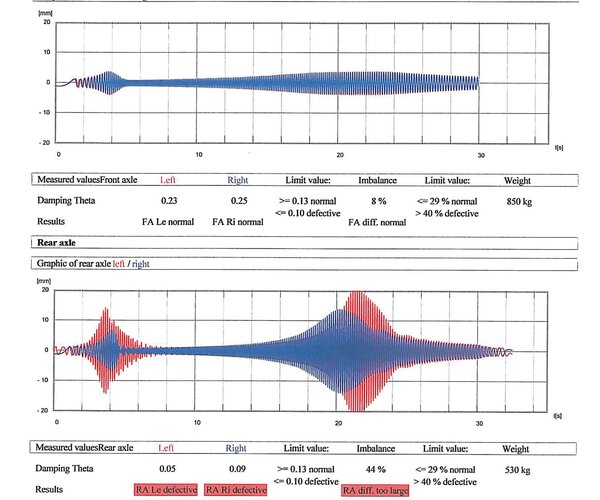

  • with evaluation by Lehr's damping ratio D with deviation display and graphics

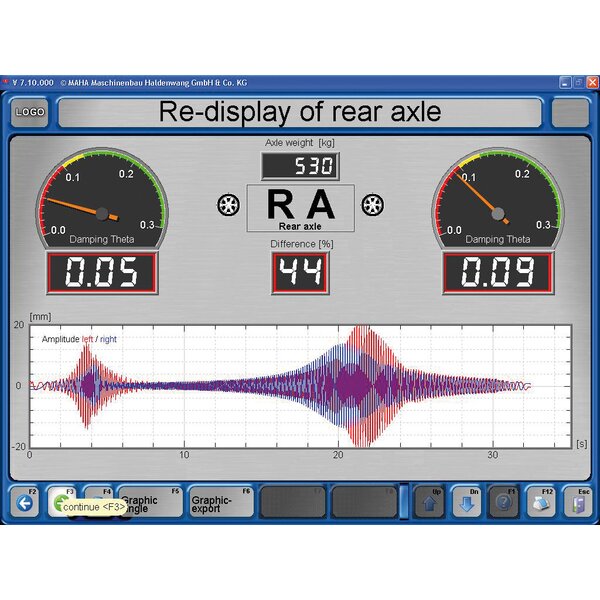

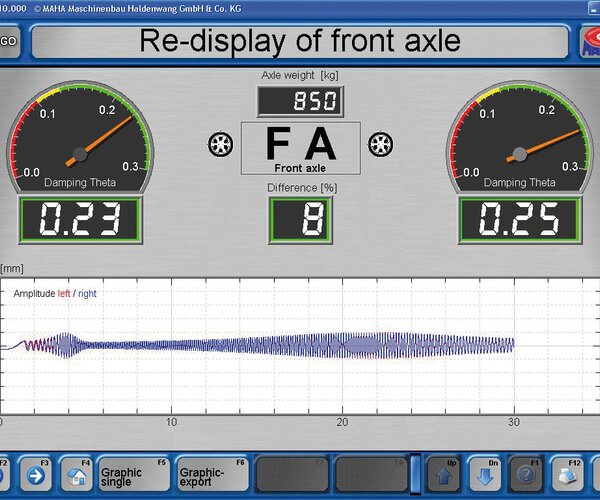

  • In conjunction with EUROSYSTEM: Display on PC screen with evaluation by Lehr's damping ratio D with deviation display and graphics


Design:

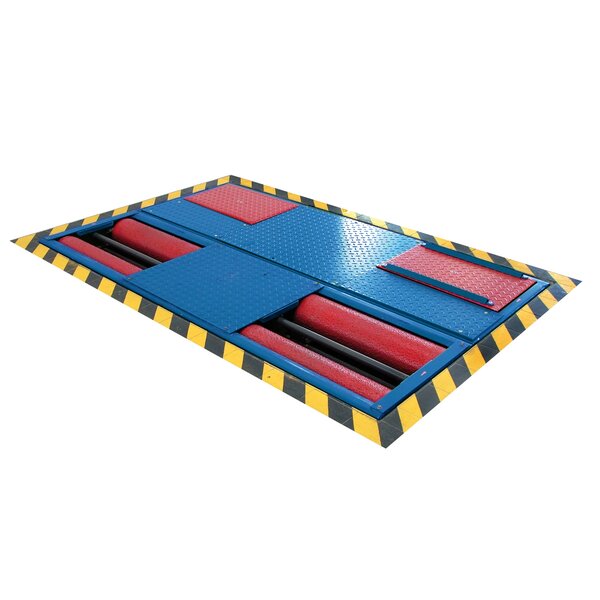

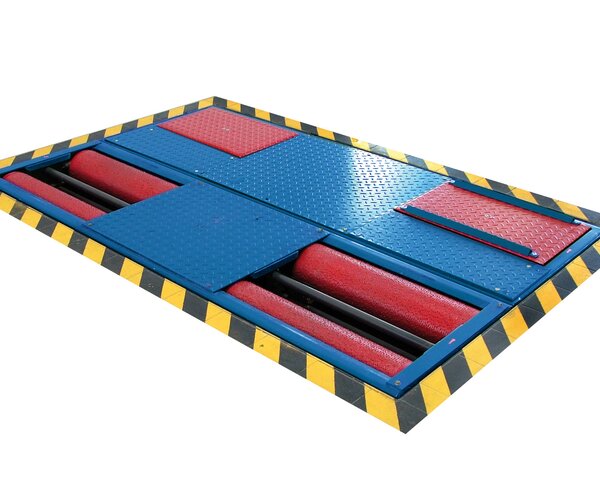

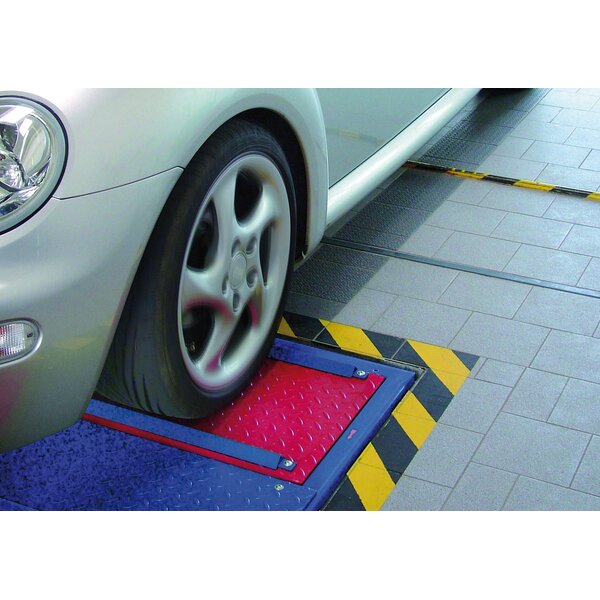

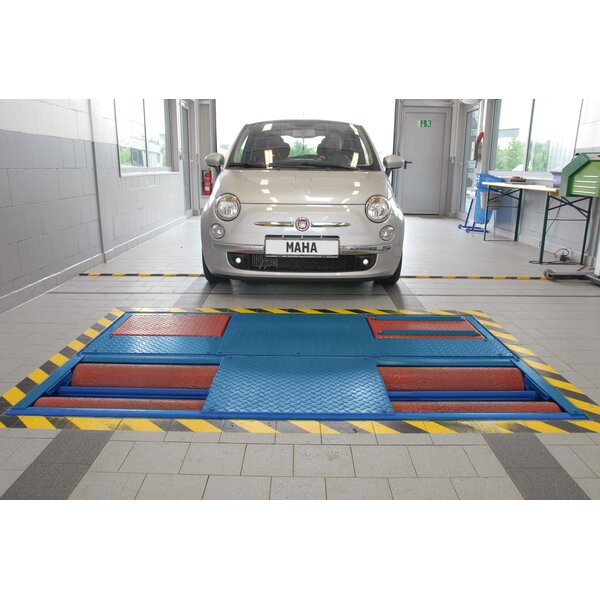

  • Shock absorber tester C W220
  • Self-supporting, enclosed floor assembly (Compact)
  • High-quality powder coating: anthracite grey, RAL 7016


Scope of delivery:

  • Shock absorbertester C_MSD C 2.5 W220 Enclosed floor assembly
  • Prepared for connection to CONNECT test lane


Downloads

Sales documents

Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

Axle load (test capacity)2200 kg
Axle load (support capacity)2500 kg
Min. track880 mm
Max. track2200 mm
Drive power2 × 1.1 kW
Excitation lift6.5 mm
Excitation frequency (regulated)2 - 10 Hz
Maximum plate lift70 mm
Measurement display
(damping ratio D )0.02 - 0.3 (without units)
gG fuse16 A
Power supply1/N/PE 230 V 50/60 Hz
Floor unit dimensions (H x W x L)280 x 800 x 2320 mm
