MA STAR 3.5 A STOCK VP 251230

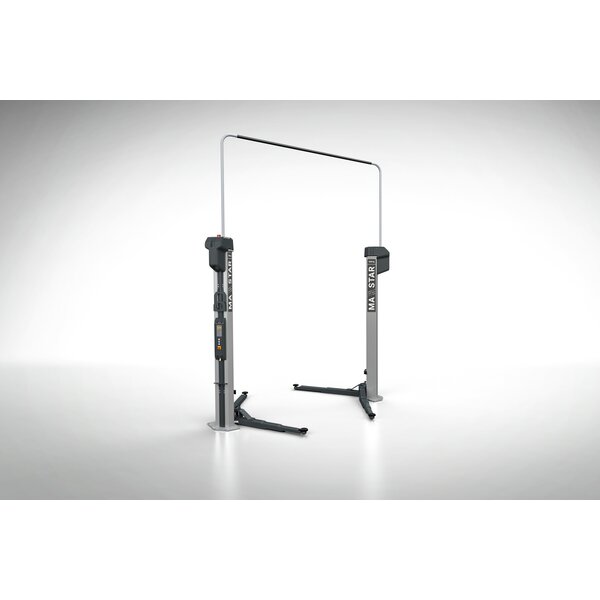

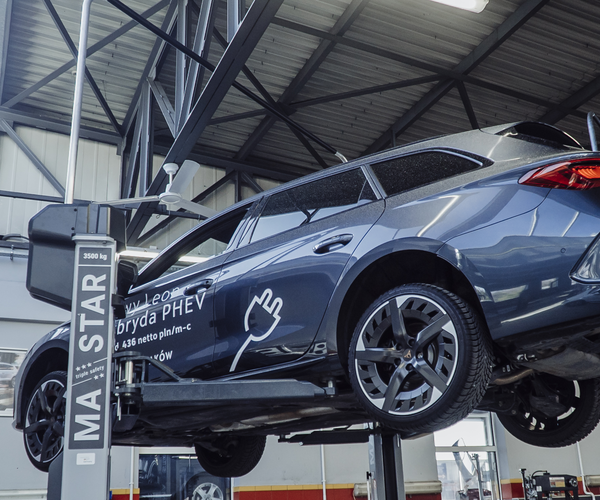

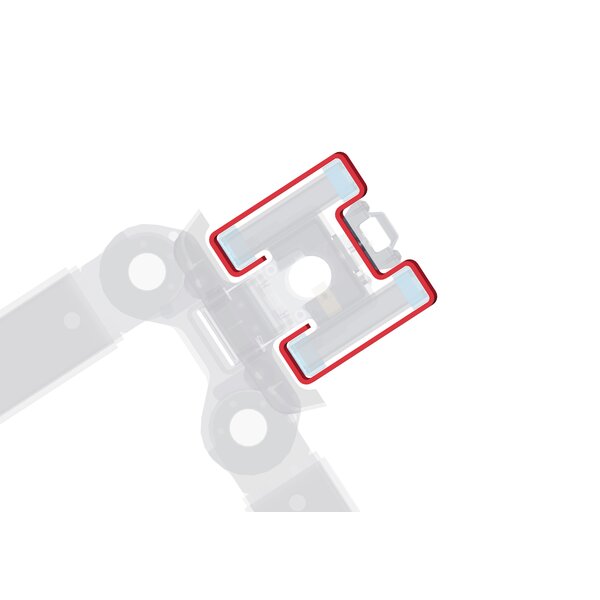

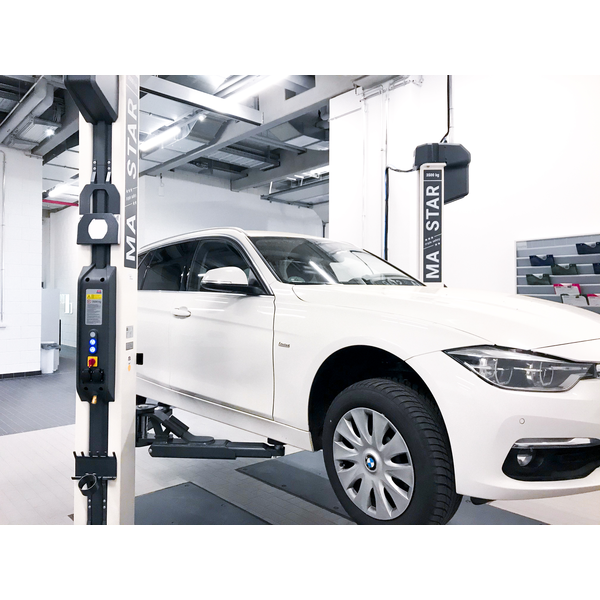

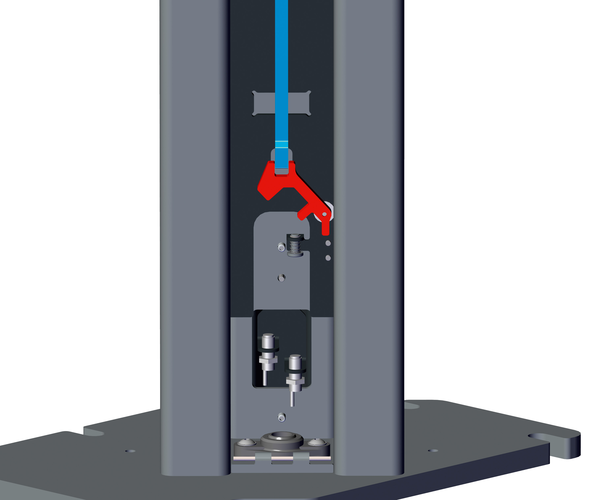

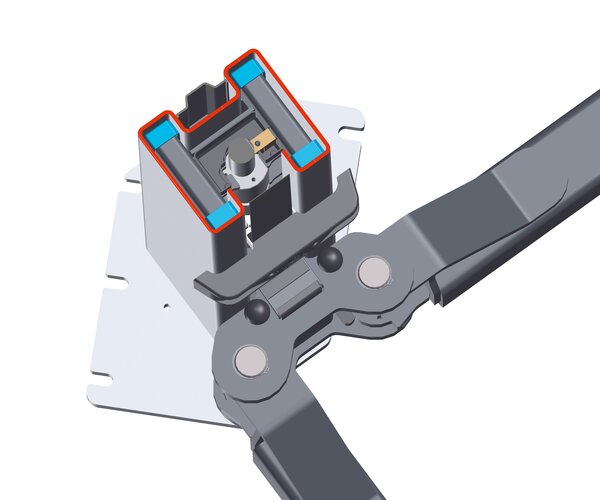

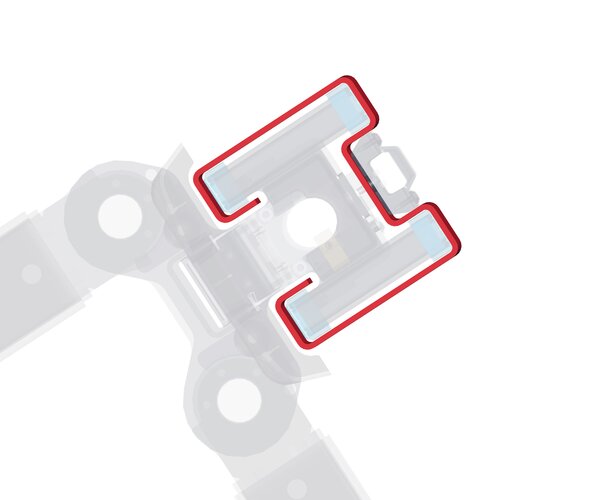

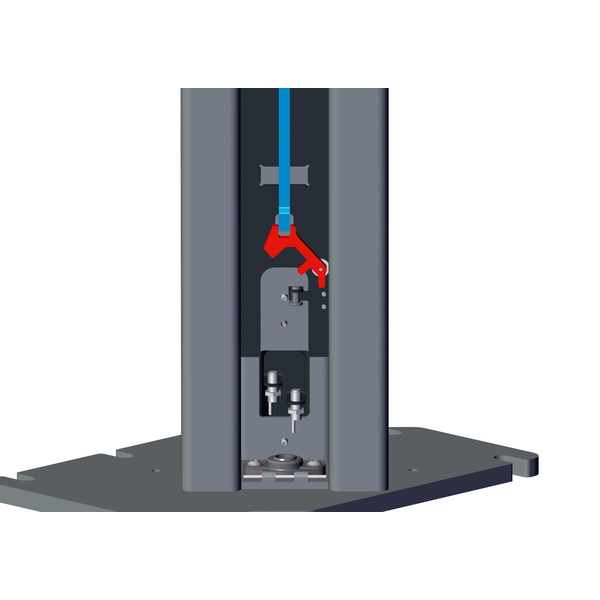

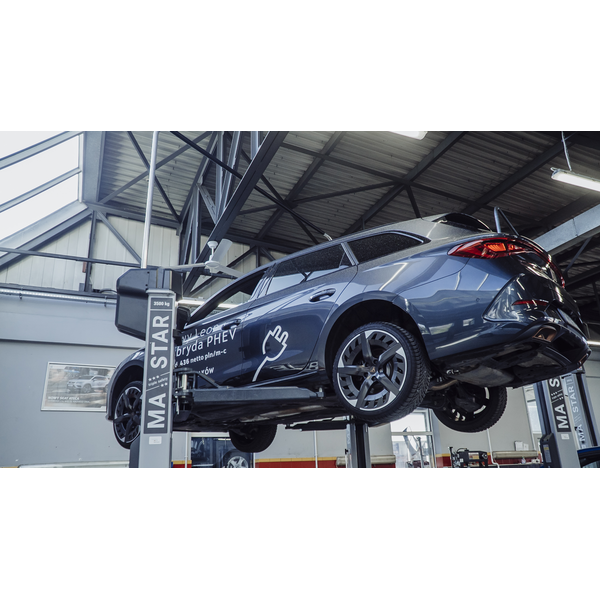

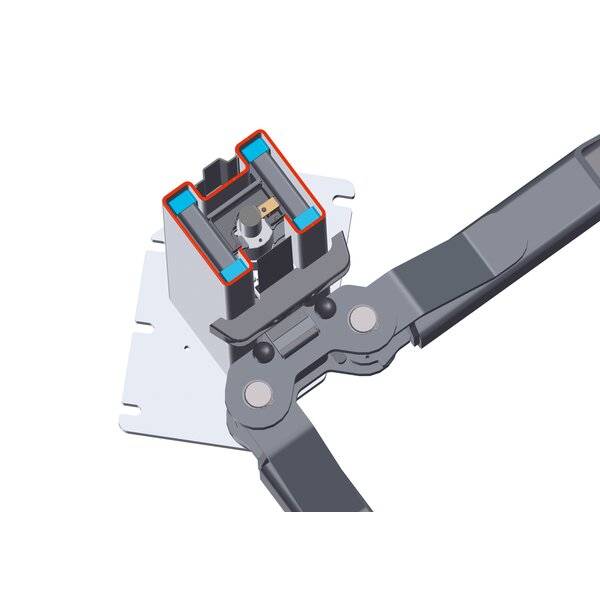

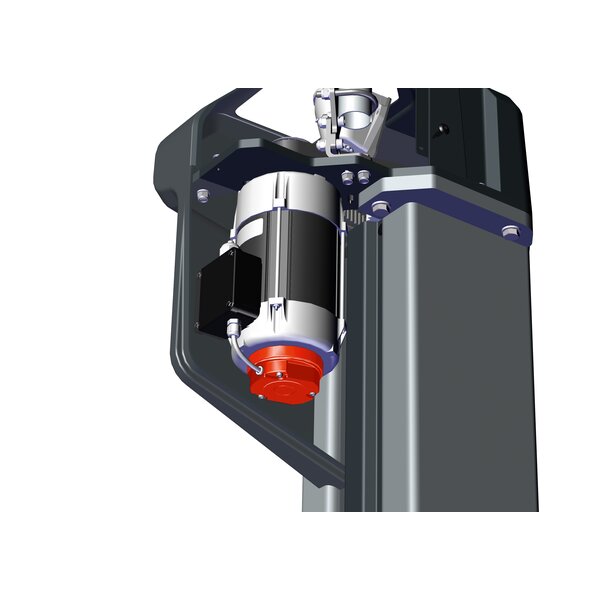

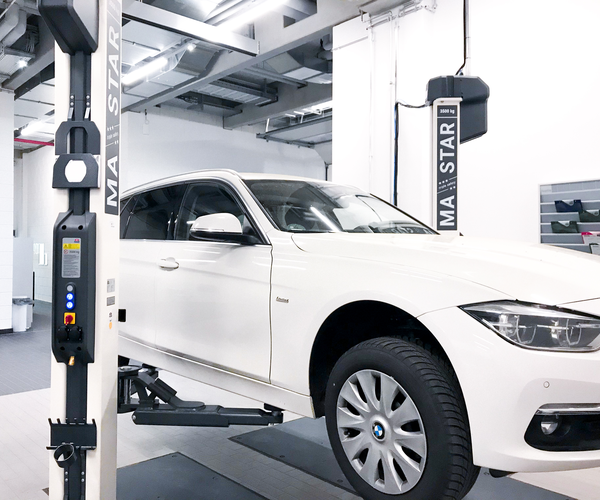

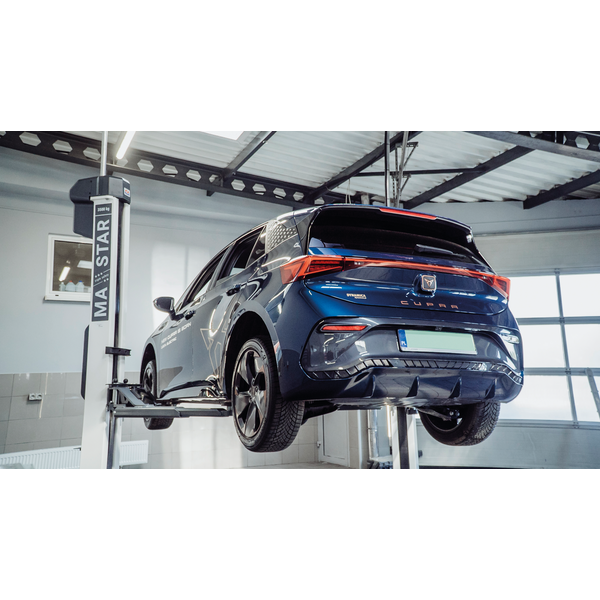

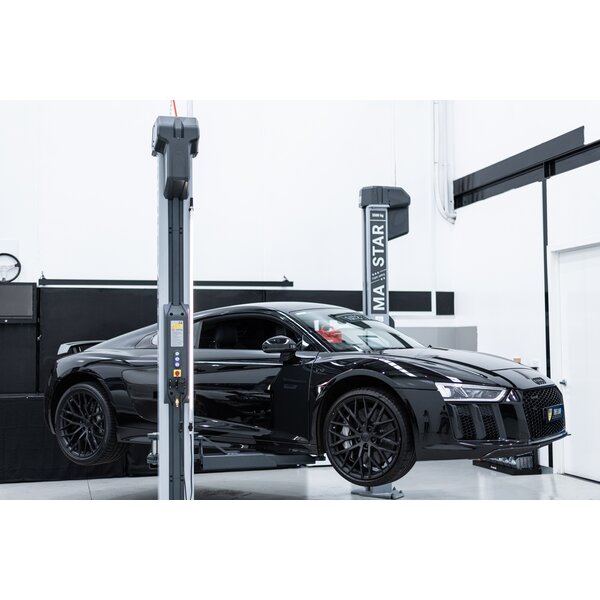

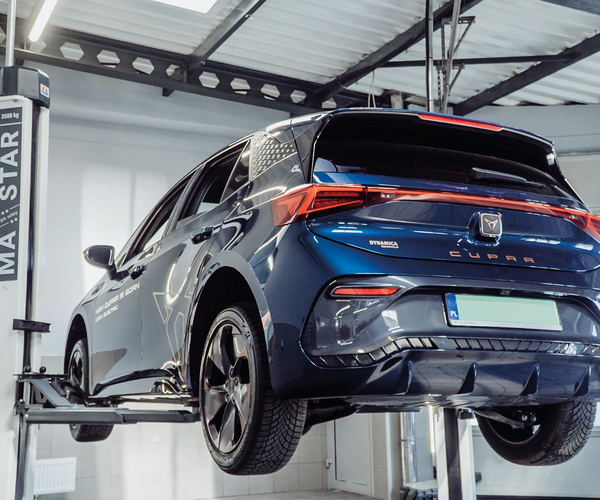

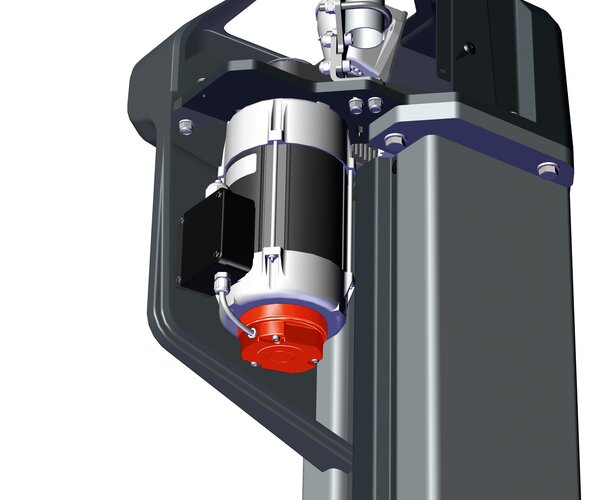

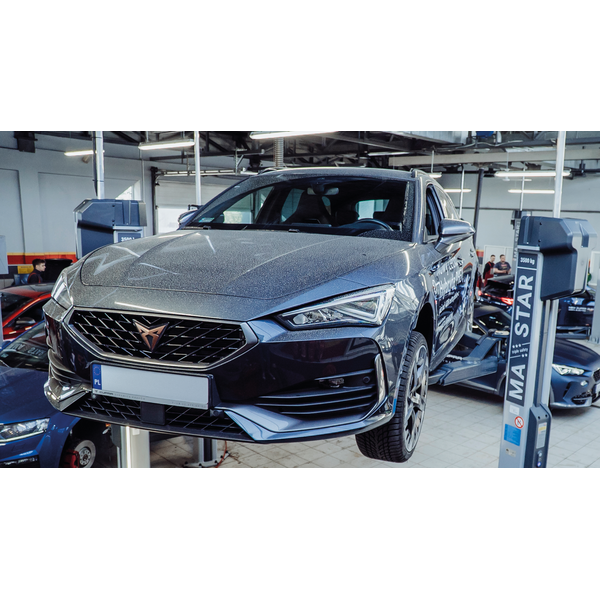

The 5-star lift MA STAR 3.5 A, which features stable torsion-resistant columns of rolled H-section steel, lifts cars and vans of up to 3.5 t. Its 45° rotated columns allow a wide opening angle for vehicle doors. The two post lift guarantees triple safety thanks to its spindle nut package, patented "giraffe" nut breakage detection and motor brake. The MA STAR also impresses with its straightforward plug and play commissioning as well as its intuitive, LED-based operation.

STOCK version - available ex stock.

product details / scope of delivery

STOCK version - available ex stock

  • RAL 7040 -

Description:

  • Load capacity 3500 kg
  • triple safety

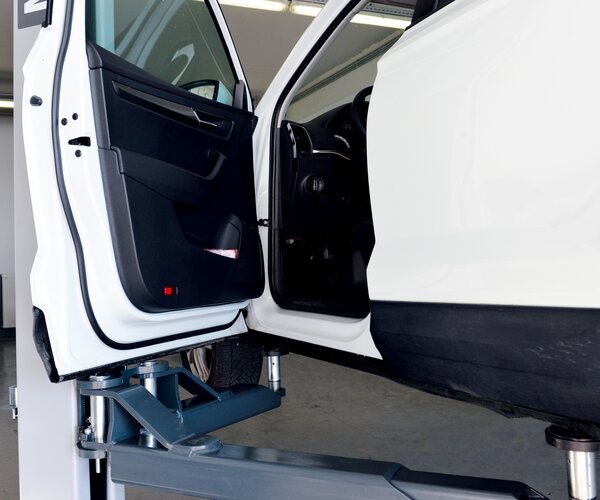

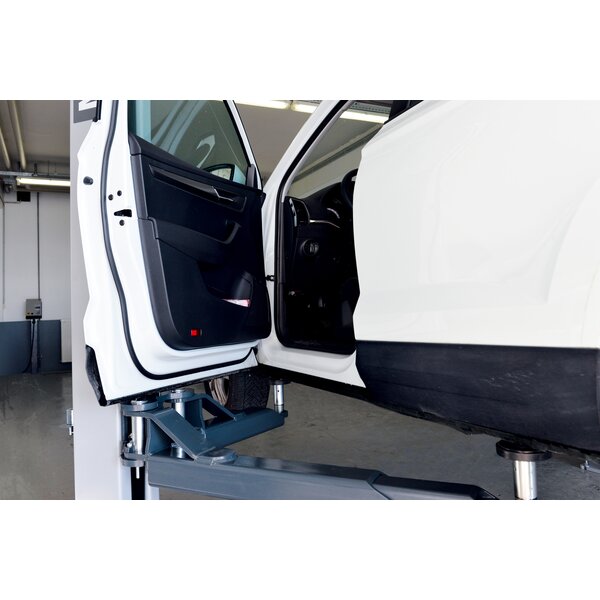

  • Columns turned by 45° for wide opening at the vehicle
  • Asymmetrical support arms
  • Short support arms swivelling 180°
  • Variable installation width
  • High-quality powder coating:
    • Window grey, RAL 7040 (columns)
    • Anthracite grey, RAL 7016 (lifting carriages, support arms)


Scope of delivery:

  • 2 asymmetrical columns with operating unit
  • 4 asymmetrical support arms (2 double, 2 single telescopic)
  • Support disc plug-in system

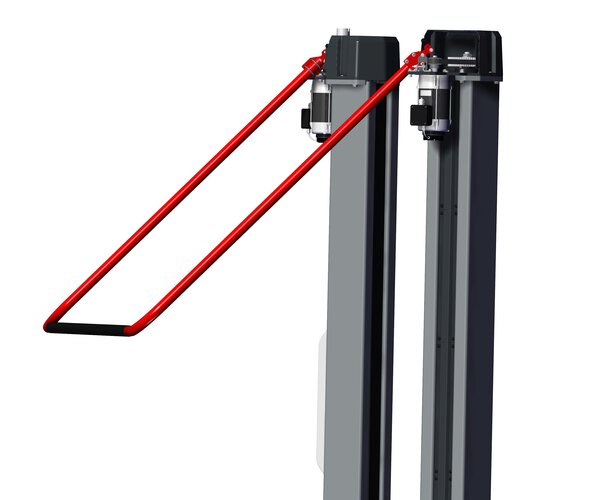

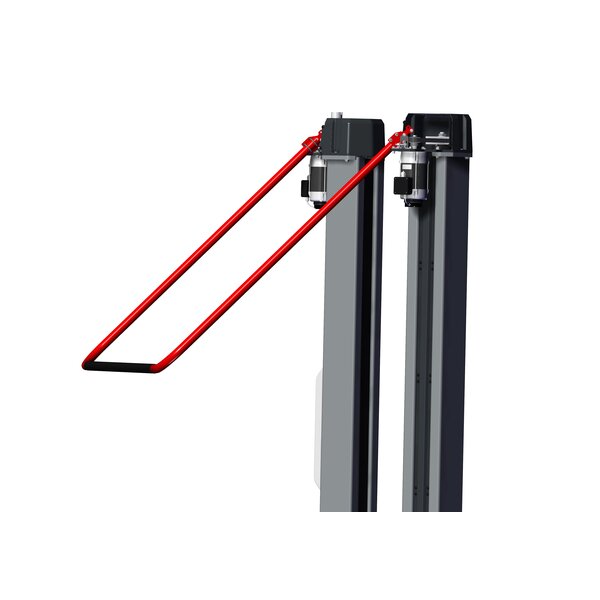

  • Cable bridge

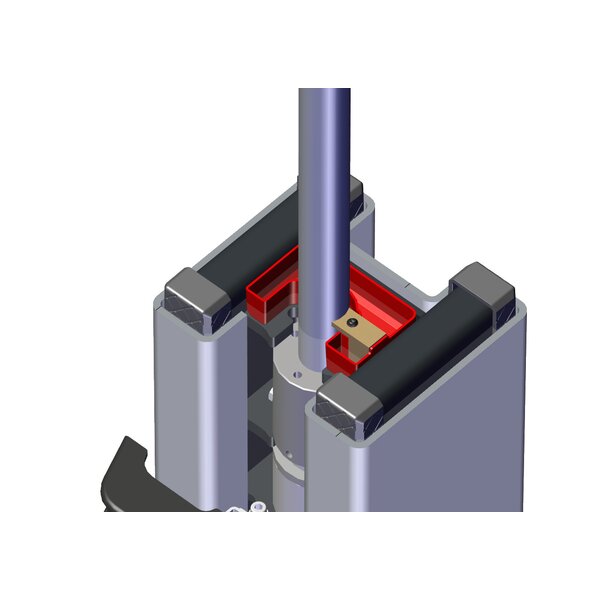

  • Spindle oil (0.5 l)
  • Operating instructions
  • CE Declaration of Conformity
  • Transport packaging


Downloads

Sales documents

Brochures
Brochure MAHA MA-STAR
DE EN
Brochure (Printable version) MAHA MA-STAR print
DE EN
Technical Datasheet
Technical Datasheet MA STAR 3.5 A STOCK
DE EN
Technical Datasheet (Printable version) MA STAR 3.5 A STOCK
DE EN

Technical documentation

Operating Instructions
Operating Instructions MA STAR 3.5 | 5.5 | 6.5 (Complete version)
DE EN ES FR
Operating Instructions MA STAR 3.5 | 5.5 | 6.5 (Print version for end users)
DE EN ES FR
Product drawings
MA STAR 3.5 A Data sheet, main dimensions
DE EN

Technical Data

Technical data:

Load capacity CE3500 kg
Max. lifting height1995 mm
Lifting / lowering time (depends on load)approx. 40/40 s

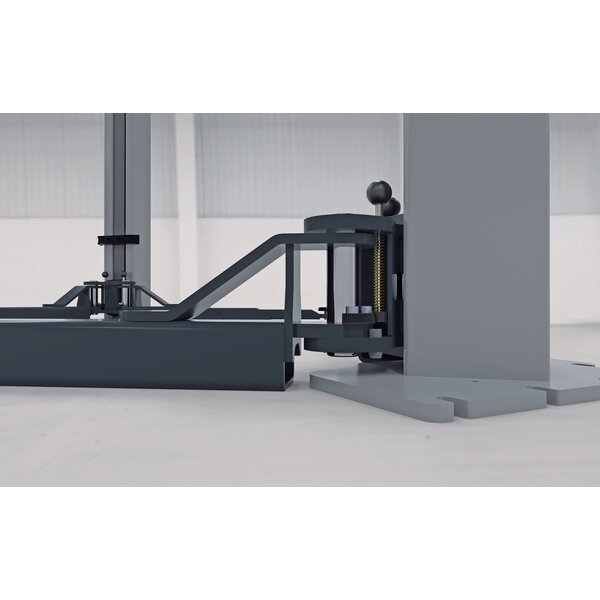

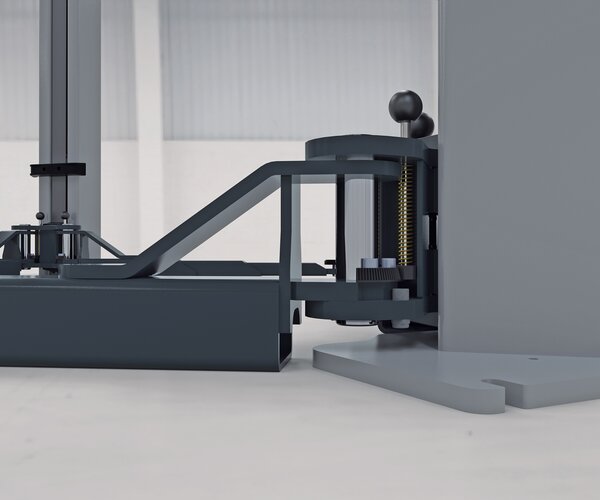

Bottom clearance of the support arms100 mm
Adjustment range, support disc80 - 110 mm
Extension range, short support arms630 - 1240 mm
Extension range, long support arms920 - 1490 mm
Overall width*3592 mm
Outsidebase plates*3351 mm
Outside columns*....... 3242 mm
Inside columns*2660 mm
Drive-through width2300 - 2450mm
Column height2943 mm
Max. overall height (with cable bridge)4499 mm

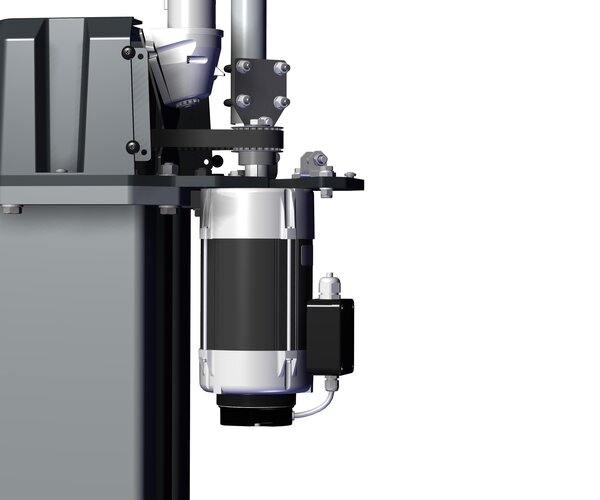

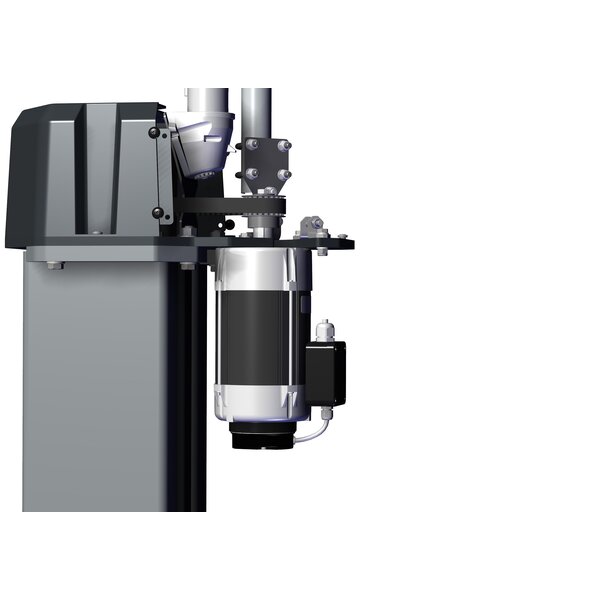

Drive power2 × 3.0 kW
Power supply3/N/PE 400 V 50 Hz
FuseC16 A
Weight650 kg
Packaging dimensions (L x W x H)2900 x 1100 x 710 mm
Required concrete qualityC 20/25
Required thickness of concrete slab w/o screedmin. 180 mm

*Dimension based on recommended Drive-through width 2400 mm
