product details / scope of delivery

  • Very smooth running due to electro-mechanical drive system
  • High efficiency thanks to smooth-running, low-maintenance ball screw
  • 5-year warrantee for entire spindle drive
  • Excellent lifting column mechanical rigidity guarantees safety and function under any conditions
  • Precision-height positioning without overrun thanks to high-quality worm gear motor

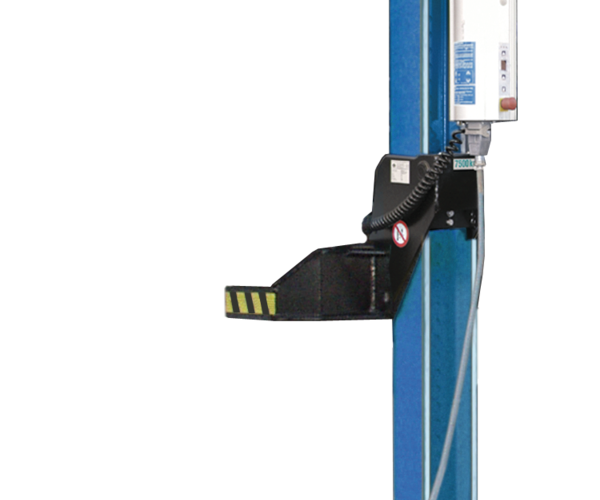

  • Lifting carriages with fixed holder

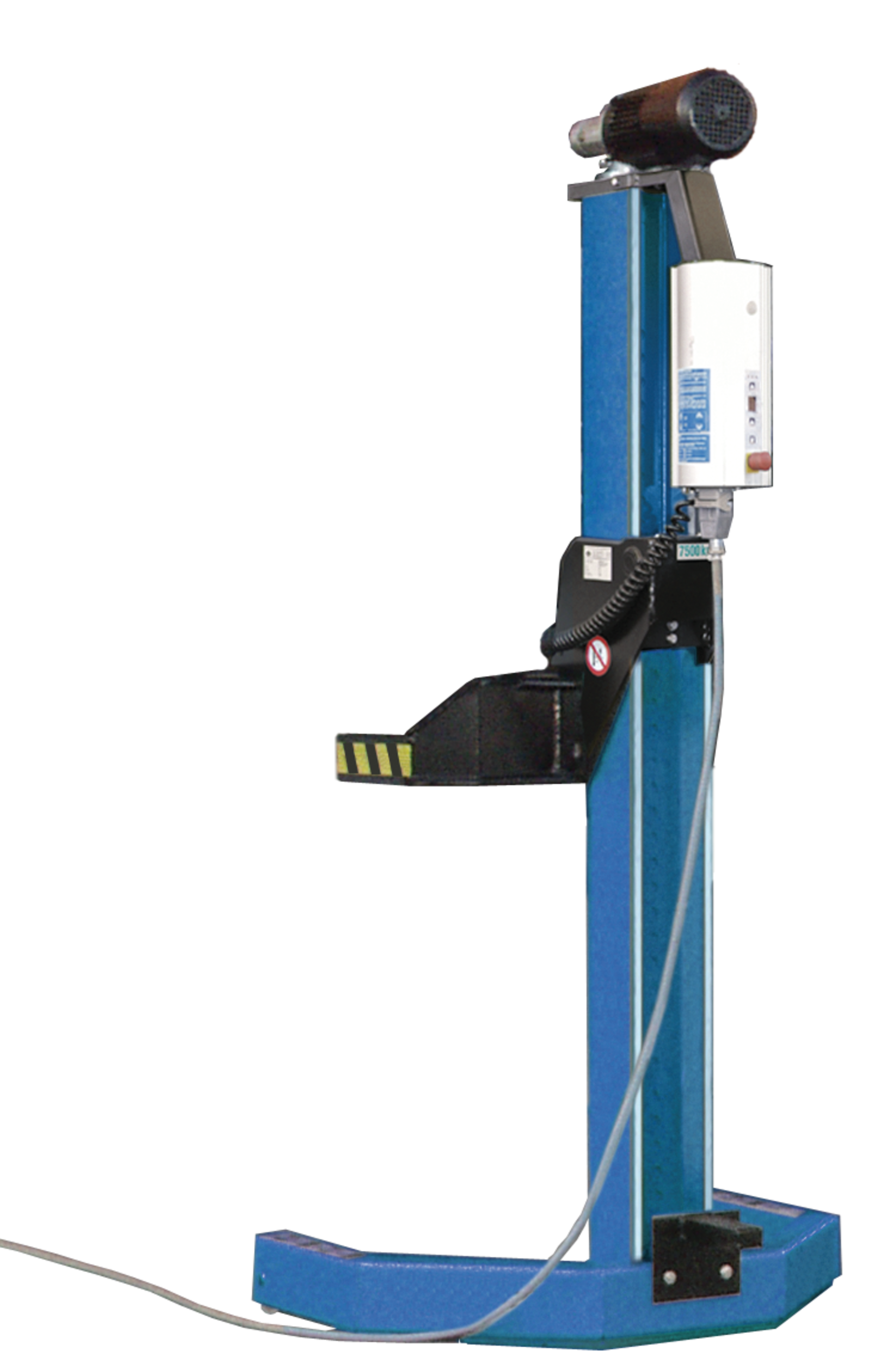

  • Overhead drive unit creates even more space in the work area

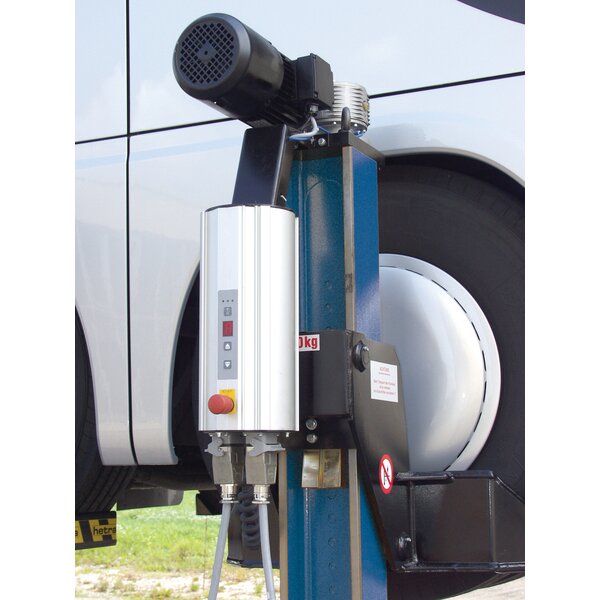

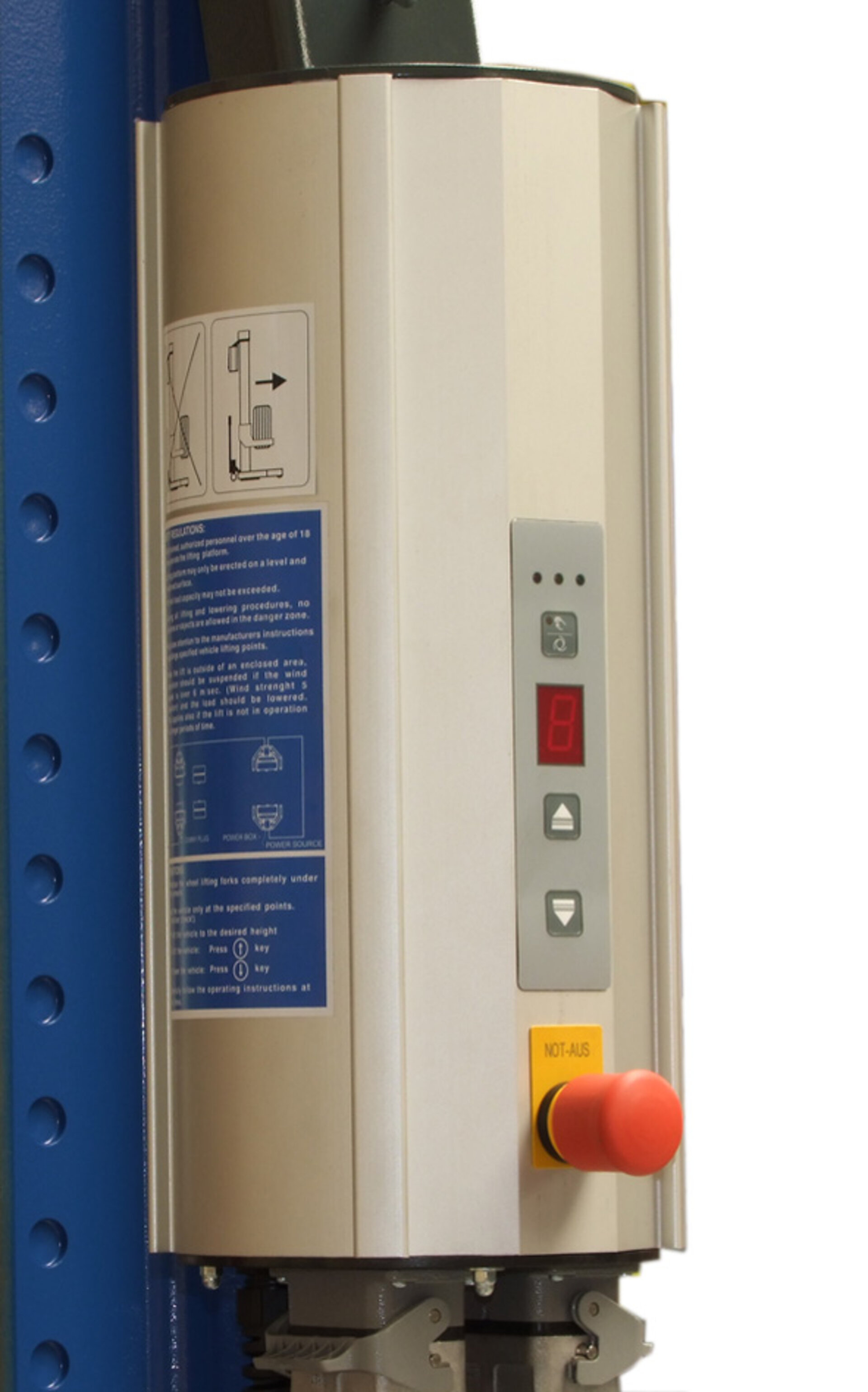

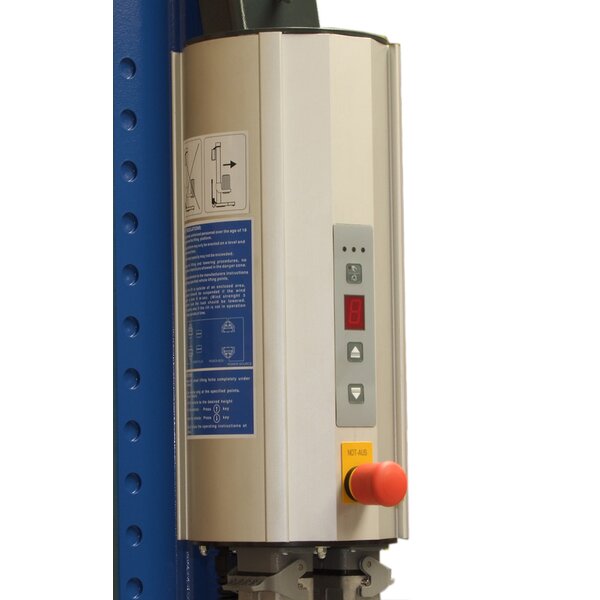

  • Workshop-robust and splash-proof control unit

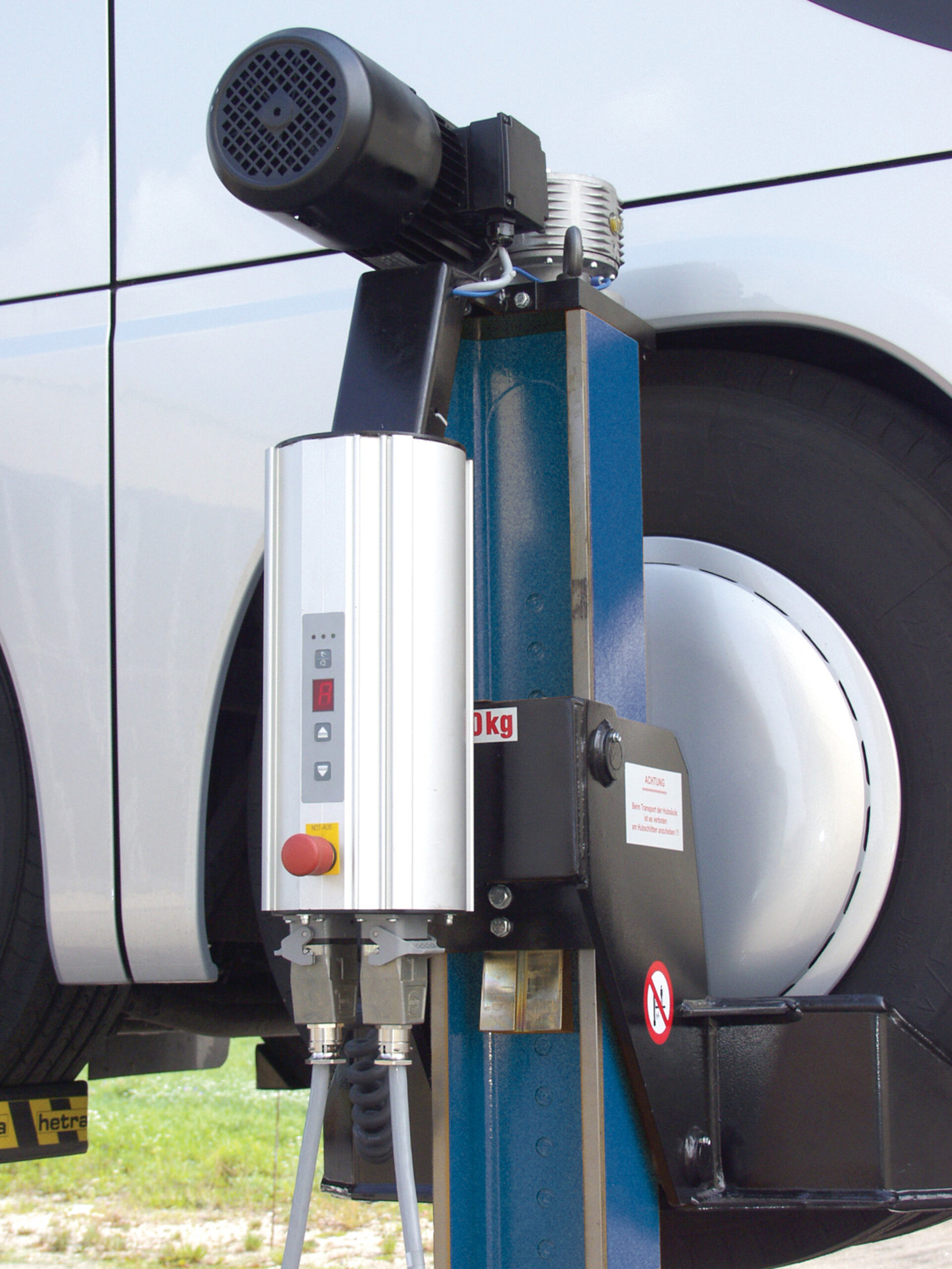

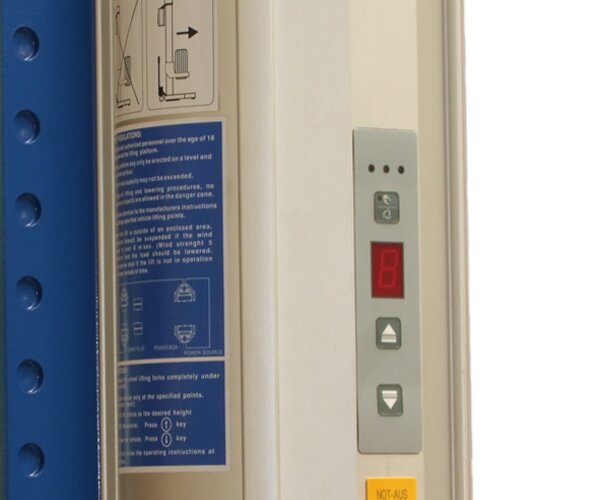

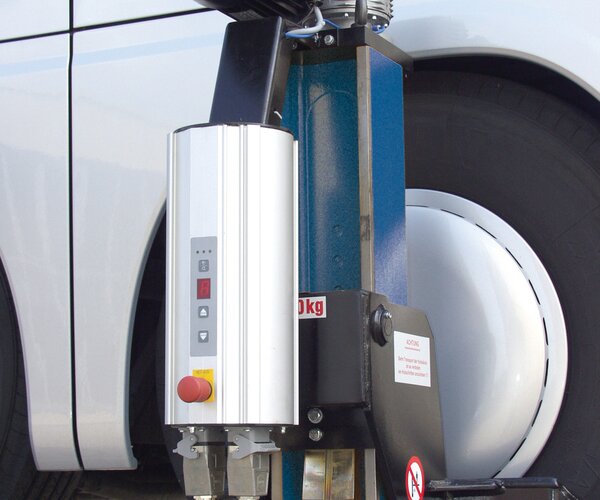

  • Wear-free and easy-to-use membrane keypad

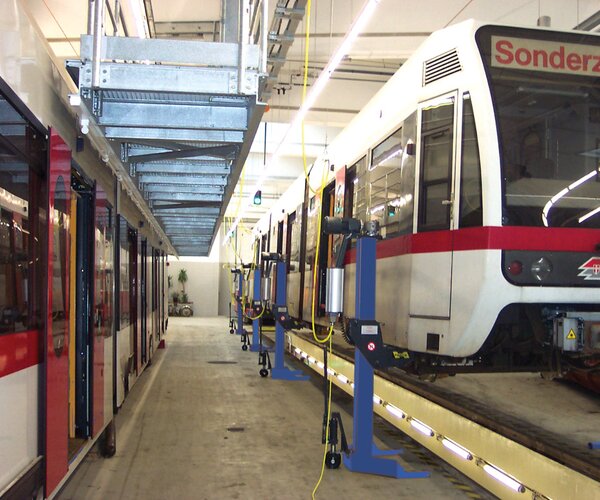

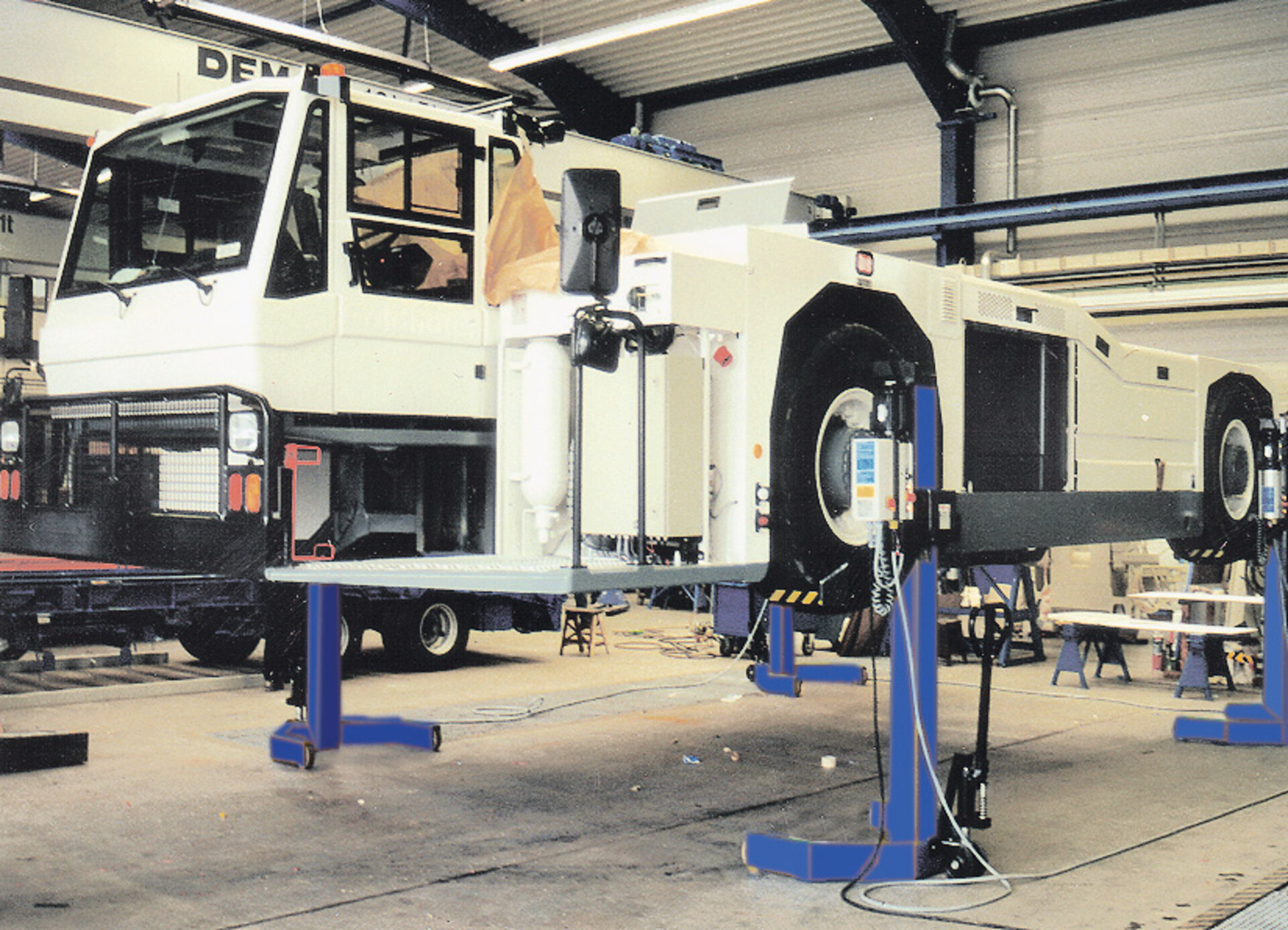

  • Flexible column positioning thanks to excess-length connection cables, guaranteeing suitability across all vehicle categories

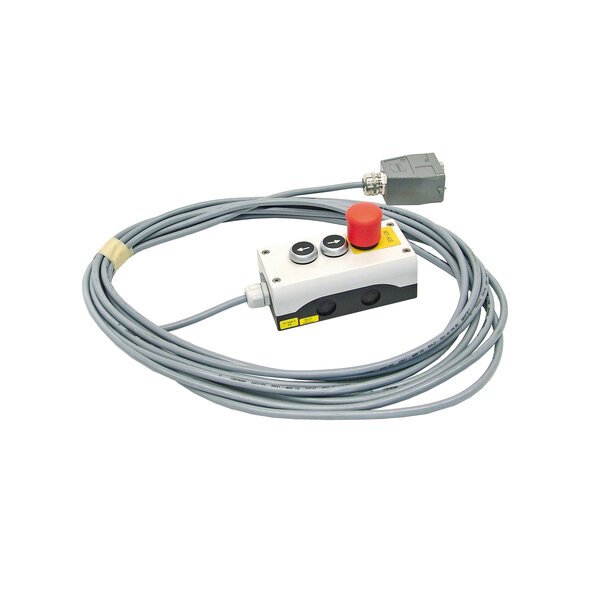

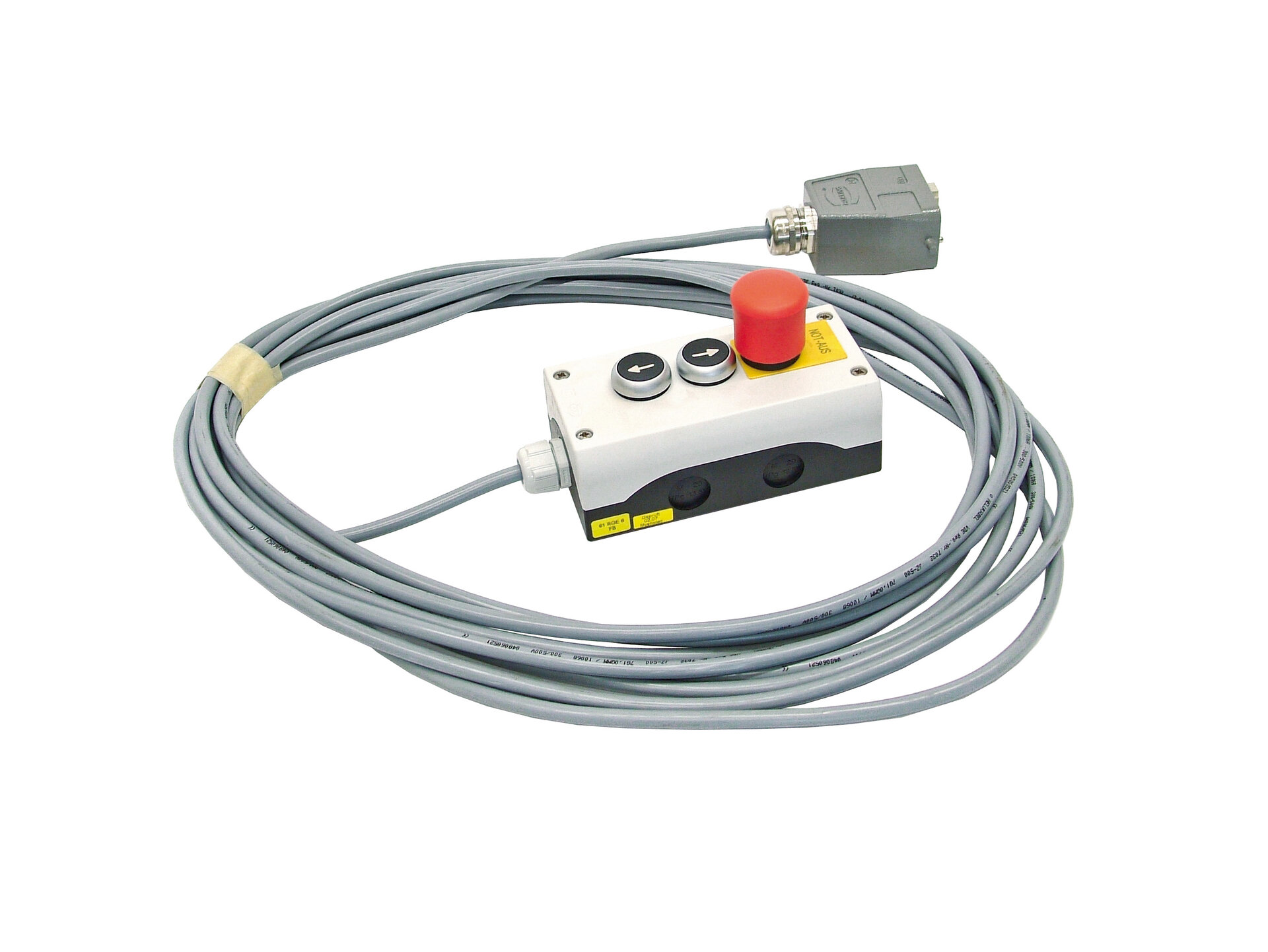

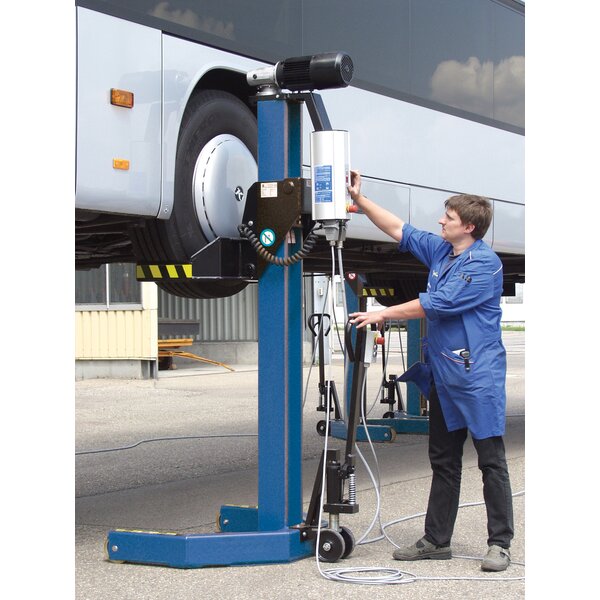

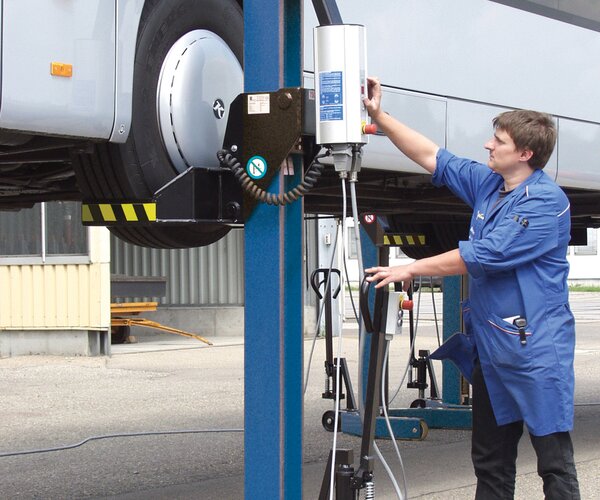

  • User convenience with panel operator controls on each individual column
  • High level of flexibility in use due to different operating modes
  • Group and individual column operating modes enable quick and easy replacement of wheel and axle suspensions
  • Microprocessor control and CAN bus-supported monitoring of movement synchronisation and all safety functions

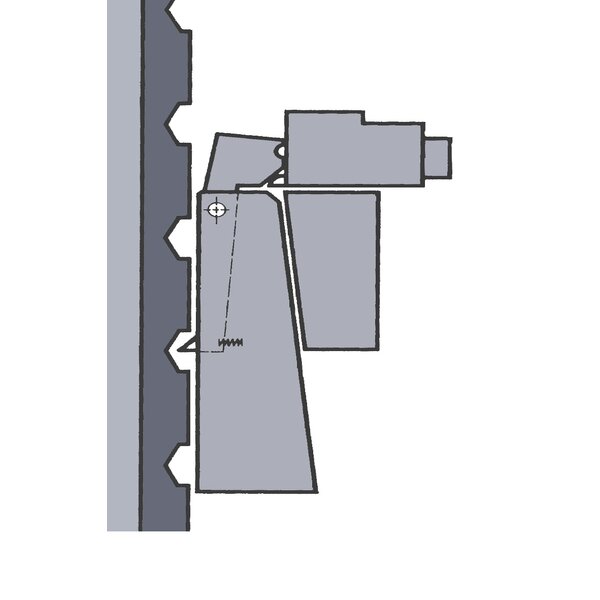

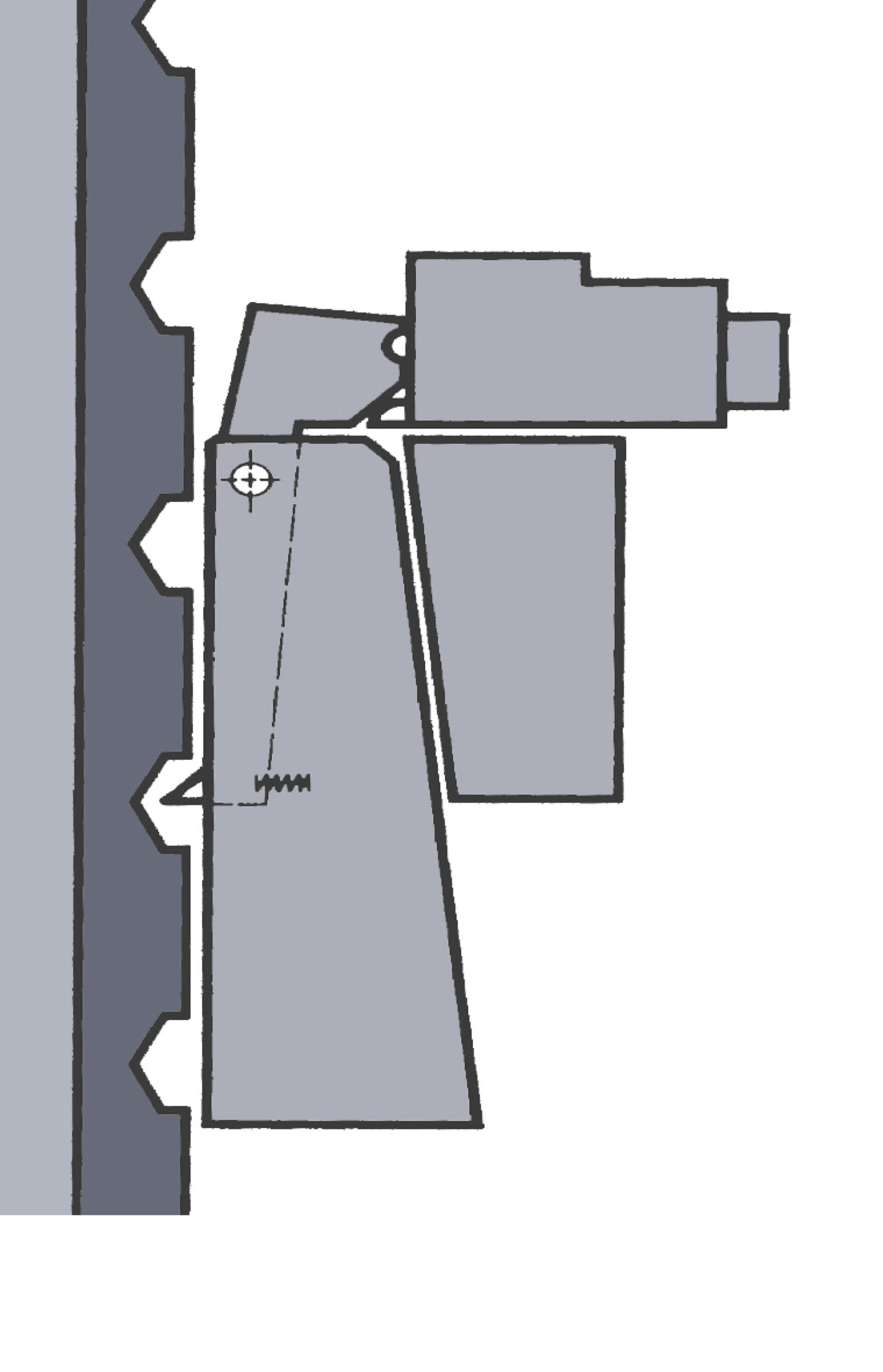

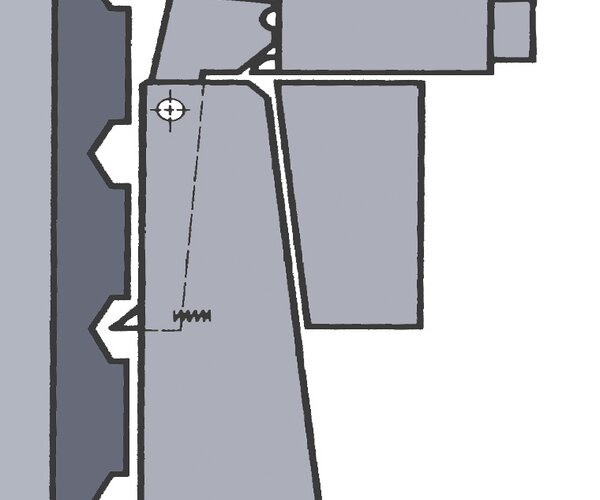

  • Utmost safety thanks to mechanically independent locking device
  • Simple emergency lowering for power failure included as standard


  • System can easily be expanded with up to six columns

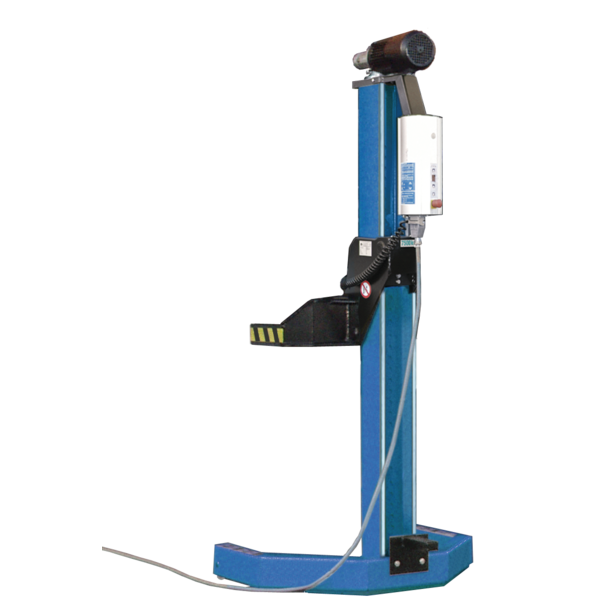

  • Streamline COLUMNLIFT design aids manoeuvrability specifically in workstations with restricted space
  • High-quality powder coating:
    • Window Grey, RAL 7040 (Columns)
    • Anthracite, Grey RAL 7016 (Lifting carriages)


Scope of delivery:

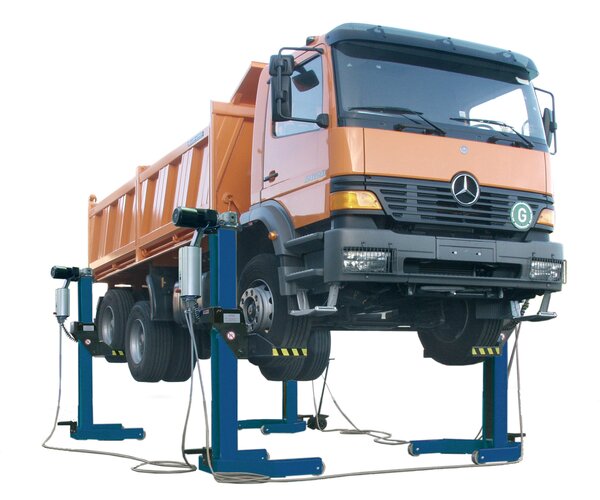

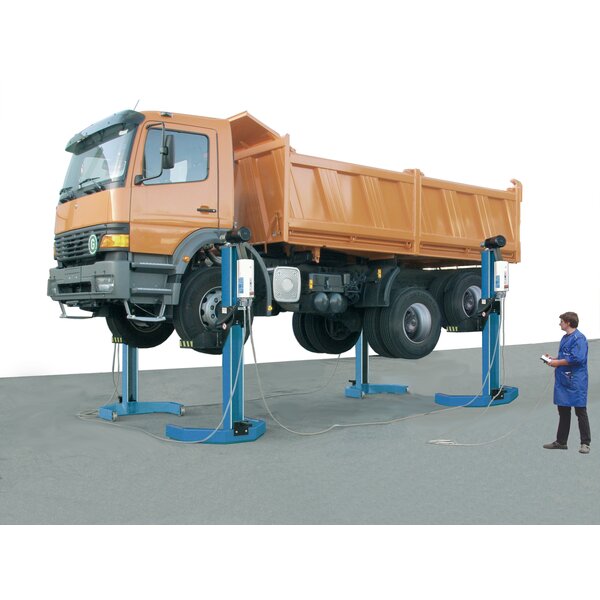

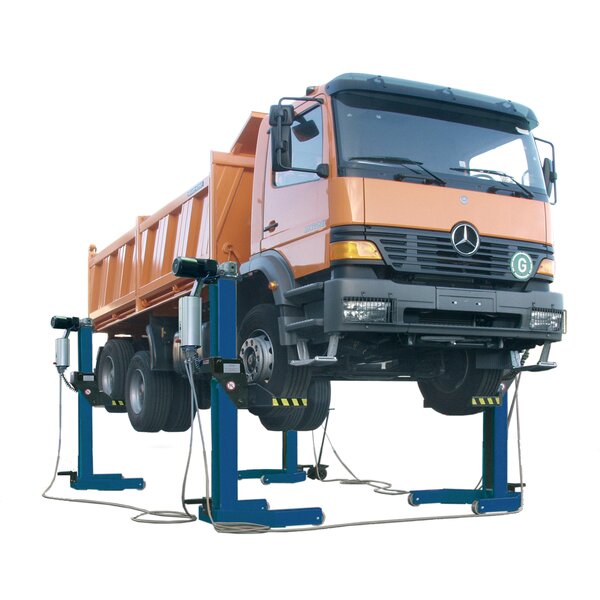

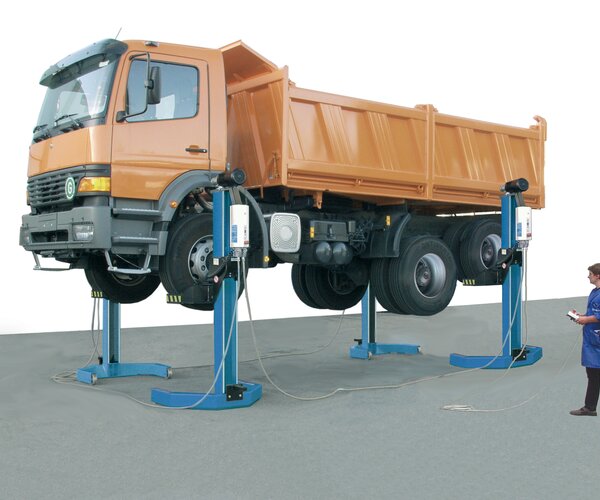

  • 4 individual mobile columns
  • 3 connecting cables (10m each) with plug and socket

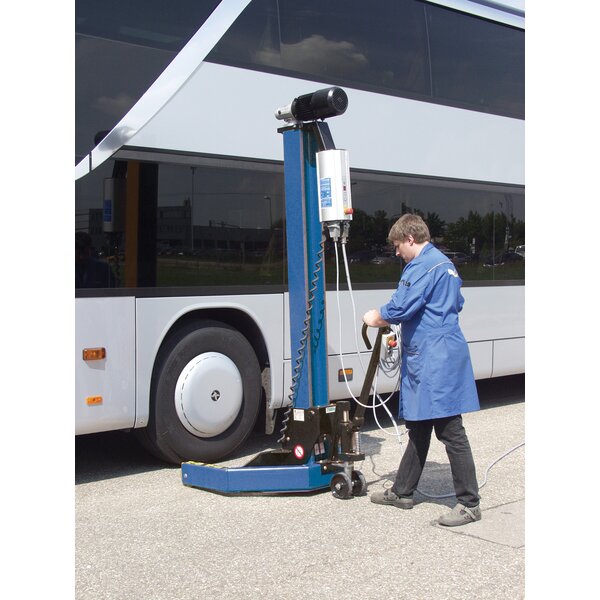

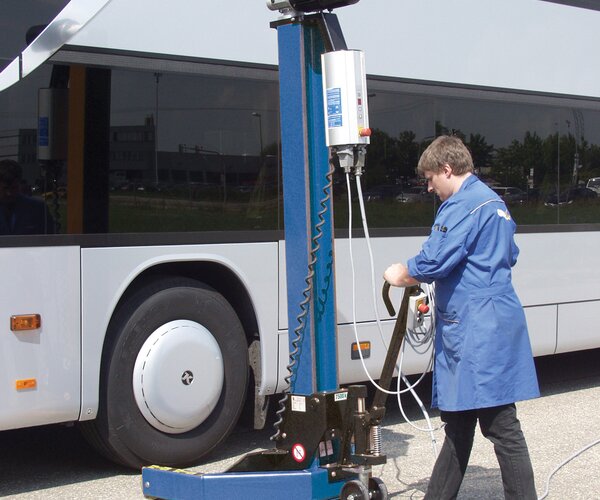

  • 1 mechanical dolly, repositionable

Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical data:

Load capacity CE percolumn7500 kg
Drive power per column1.5 kW
Weight per column452 kg
Lifting distance1750 mm
Raising/lowering time113 s
Tyre diameter min.- max.850 - 1250 mm
Supply voltage3/N/PE 400 V 50 Hz
Protection ratingIP 54
