product details / scope of delivery
Specifications:
- Type-approval certificated under German law (PTB)

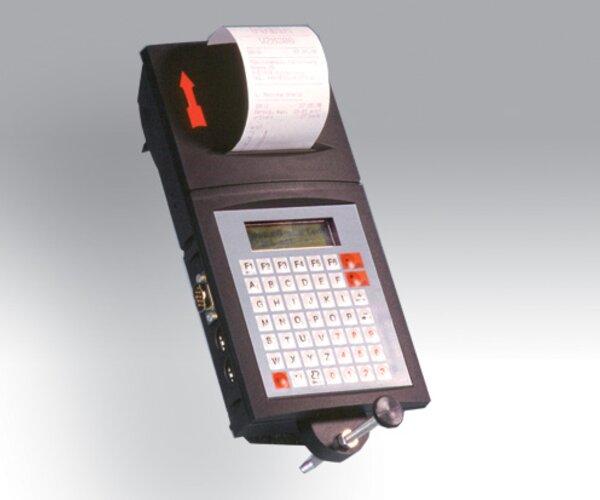

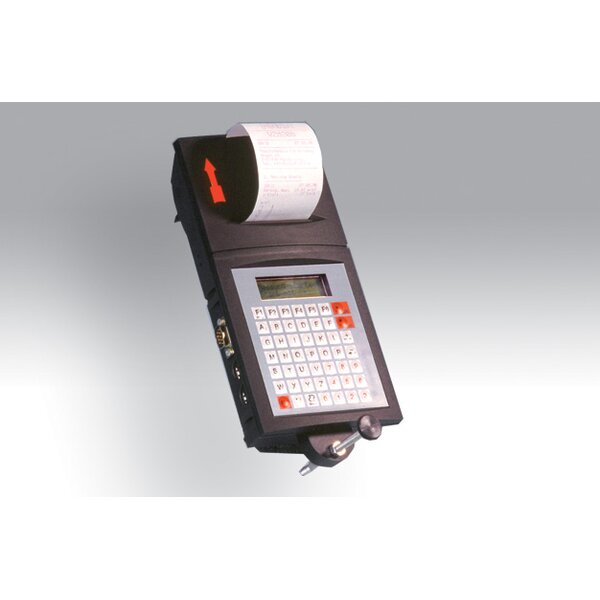

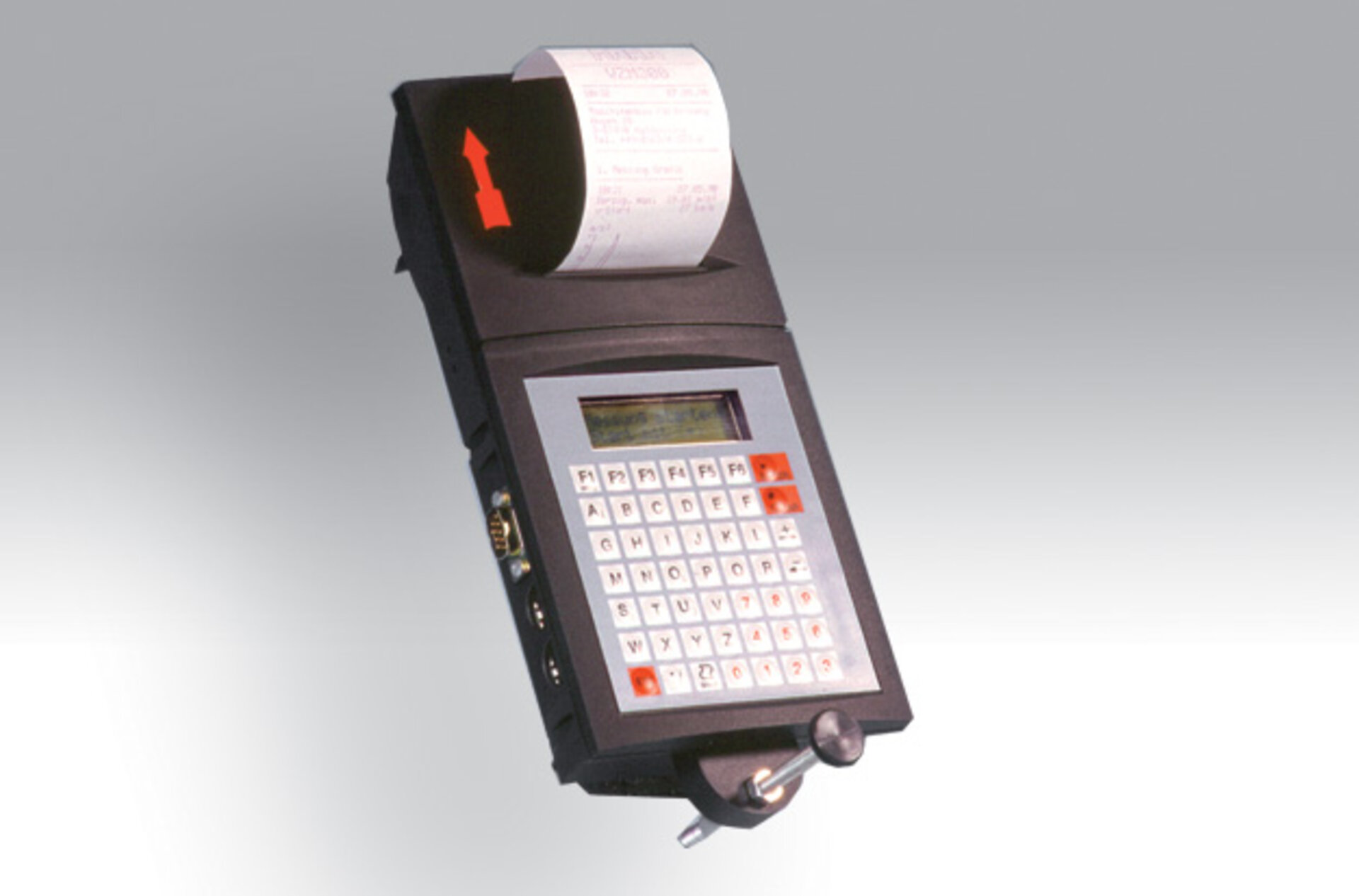

- Printer casing with keyboard and digital display

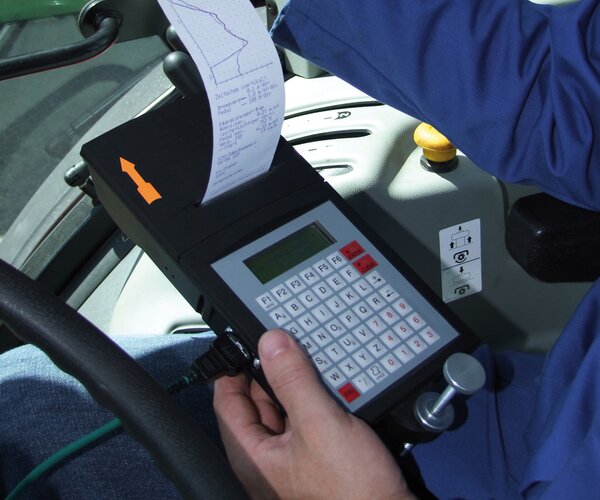

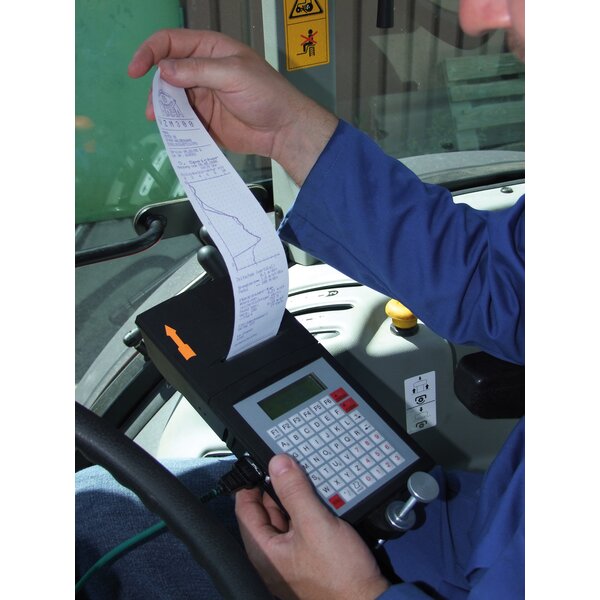

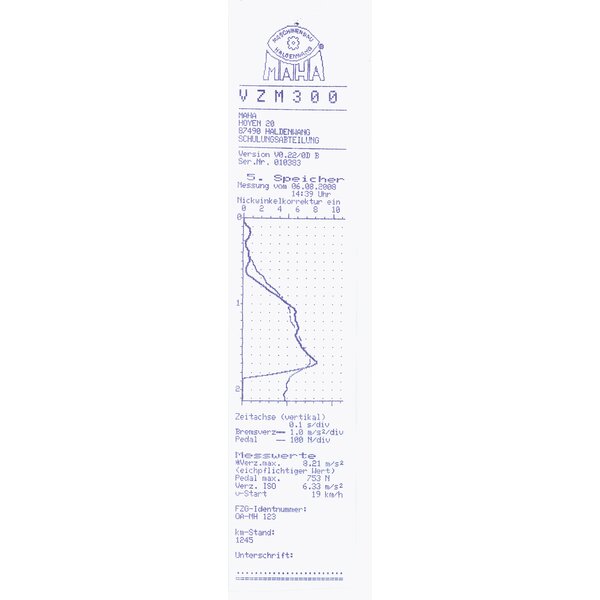

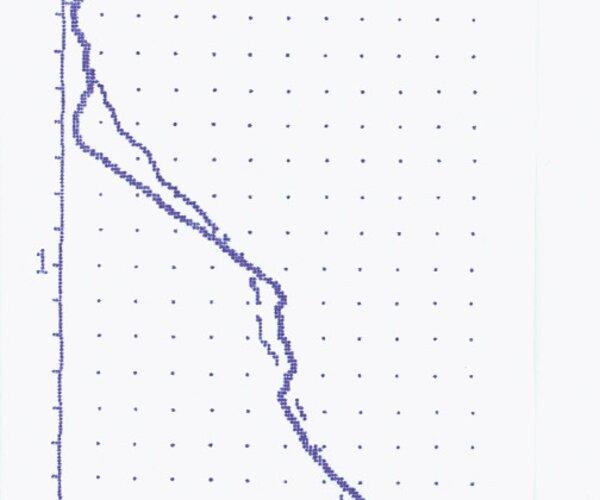

- Fast matrix printer with graphics print-out
- Piezo-electrical deceleration sensor
- Control and measuring electronics

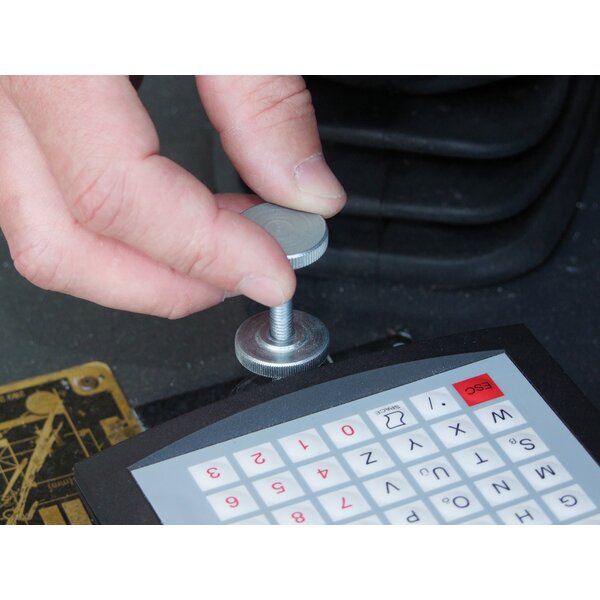

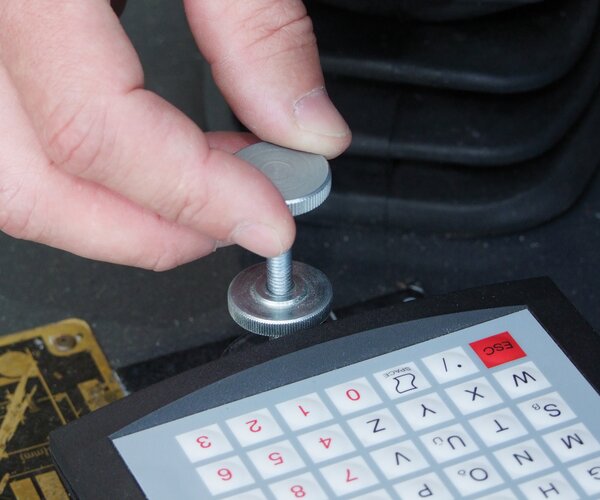

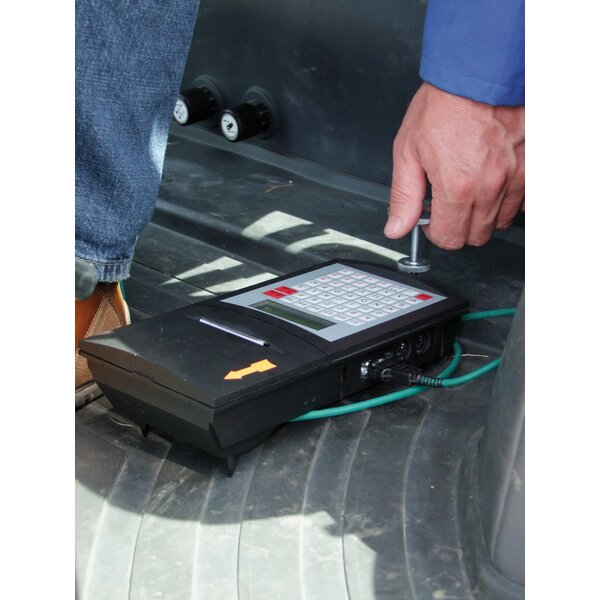

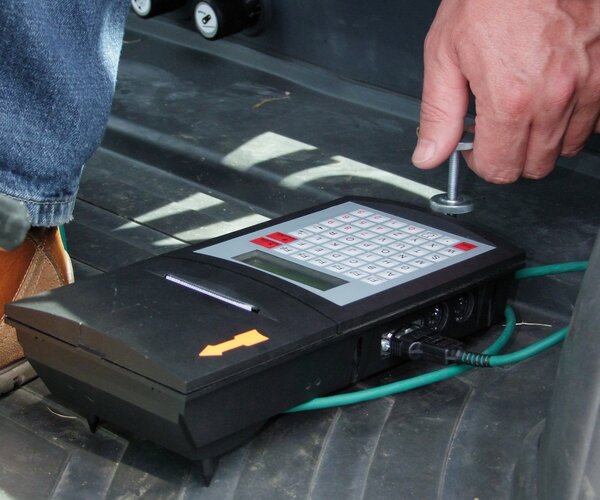

- Electrical adjustment of equipment by means of a digital
display
- Gyroscopic sensor for automatic compensation of testing error caused by the pitching action of the vehicle

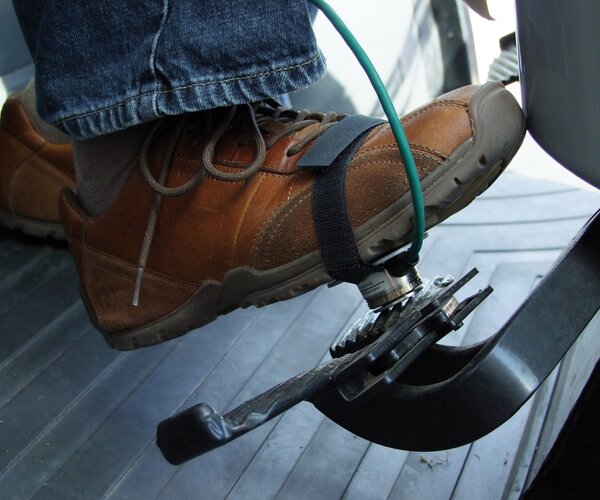

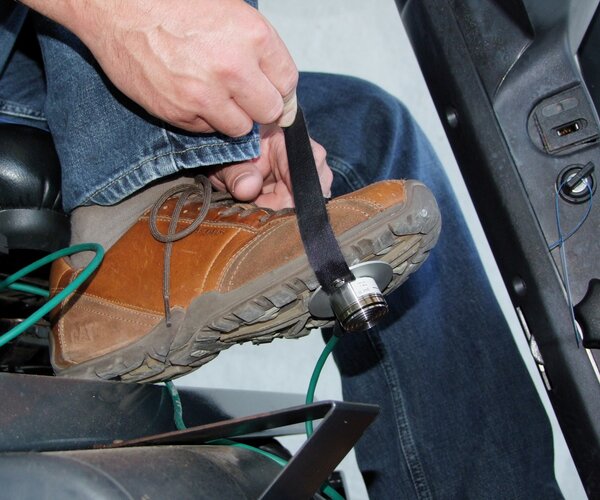

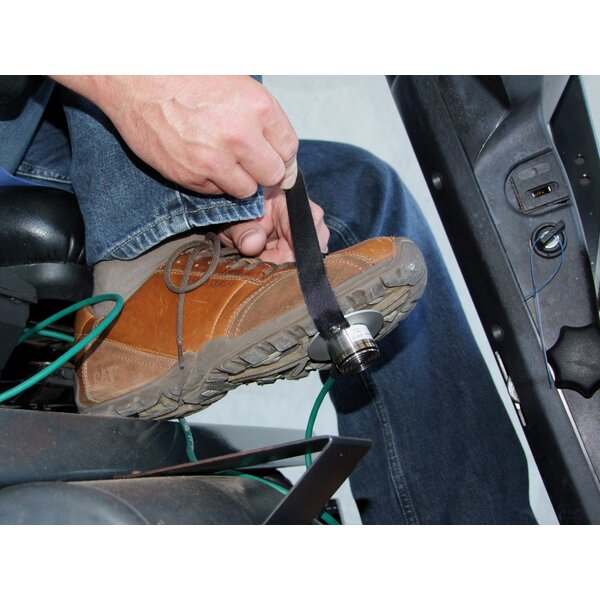

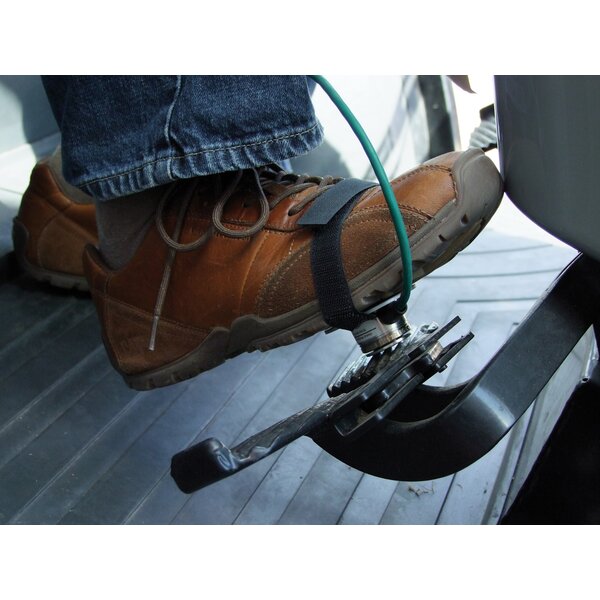

- Connector for pedal force meter and pressure and traction converter
- RS 232 interface to PC with data transmission to standard spreadsheet analysis software (up to Windows 7 compatible)
- Accu-recharger
- Spare roll of paper approx. 15 m
- Sturdy plastic carrying case
Technical Data
Technial Data:
| Measuring range: Deceleration | 0 - 20 m/s2 |
| Pedal force | 0 - 1 kN |
| Tractive force | 0 - 20 kN |
| Pressure | 0 - 20 bar |
| Accuracy: | <(><<)> 1% from final result |
| Power connection: Built-in accu | 6 V/1.8 Ah |
| Dashboard connection | 24/12 V DC |
| supply | 230 V/15 V AC |
| Weight with accu | 1.1 kg |
| Dimensions (W x H x D) | 124 x 55 x 245 mm |
