product details / scope of delivery

Description:

  • Mobile ASA-Livestream data node for the main inspection
  • Brake tester connection with SP adapter and SP-Plus
  • Check, output and documentation of ASA-Livestream interface
  • Device-independent and usable with all standardbrowsers
  • Mobile plug<(>&<)>play solution for OEMs, vehicle inspection organisations, SP test stations, car dealerships and workshops
  • Battery-powered, runtime approx. 10 h. Charging and permanent power supply via power supply unit

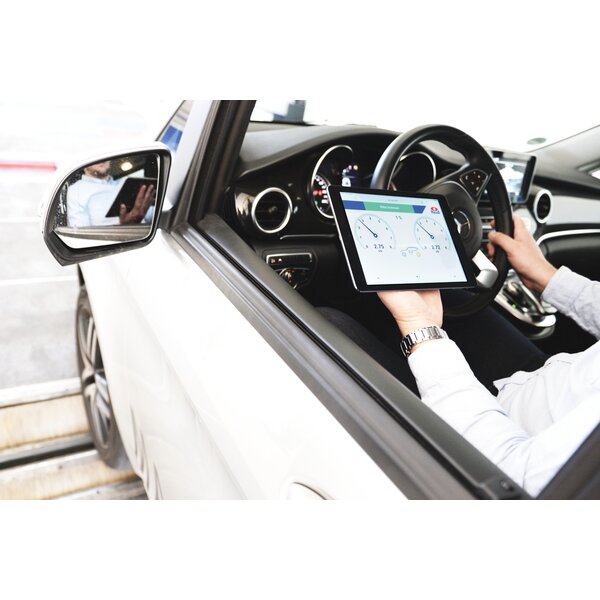

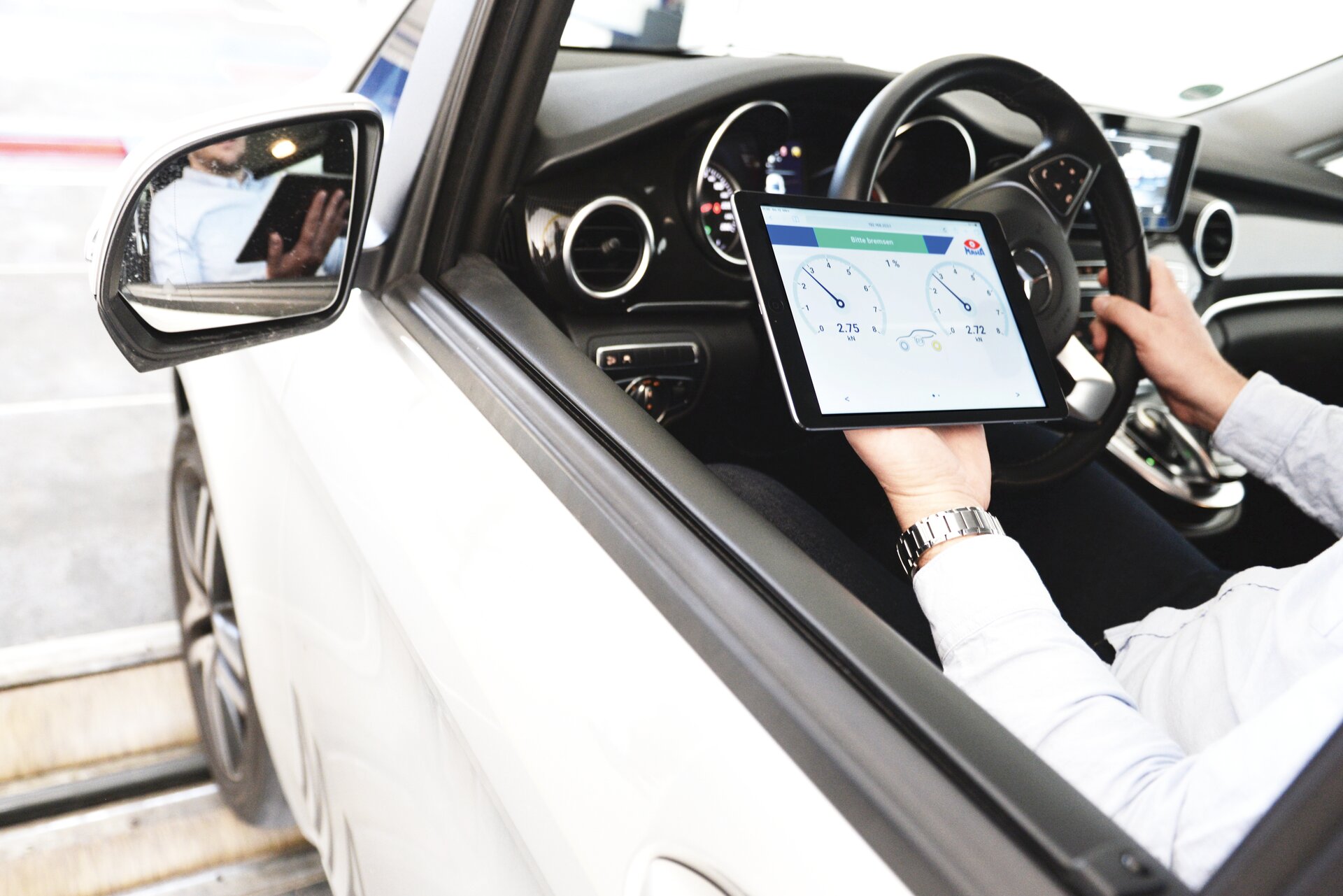

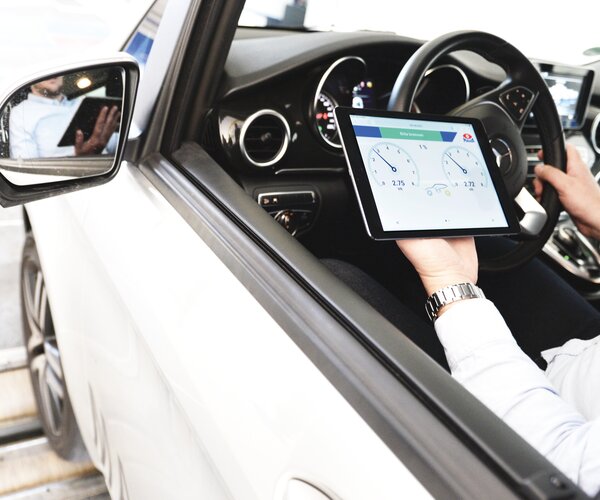

  • Digital visualisation of brake test values on Smart Devices
  • NETMAN 4.0 integrated


Scope of delivery:

  • CONNECT Cube
  • LAN cable (0.5 m)
  • Power supply unit
  • Memory card (16 GB)


Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

Temperature ranges:
Operation-10°C...+45°C
Storage-20°C...+60°C
Power supply:
Integrated batteryLiPo 10,000 mAh rechargeable
(battery charging via coaxial connector 5.5/2.1)
Power supply unit230 V/0.5 A AC-Input
5 V/0.3 A DC-Output
Dimensions (W x H x D)approx. 90 x 135 x 46 mm
Weightapprox. 35 kg
